Description

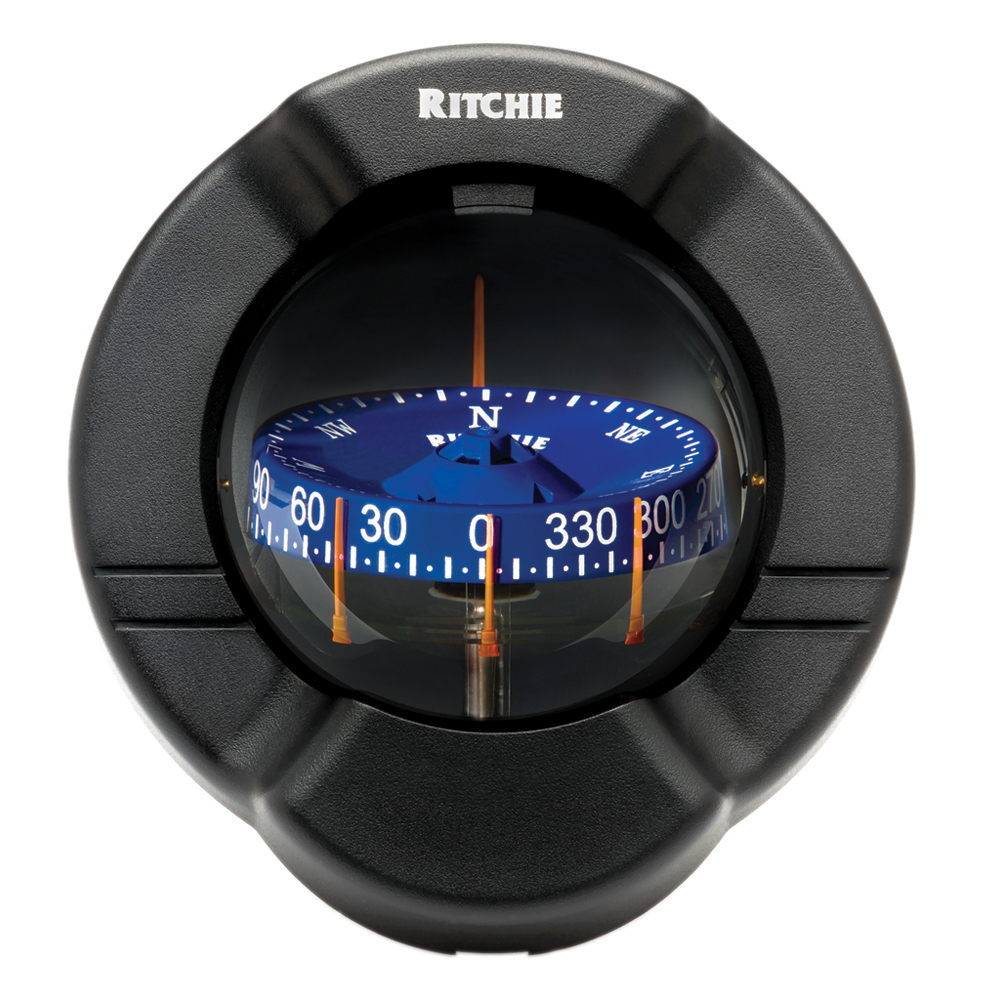

SuperSport Compass

The SuperSport SS-PR2 is designed primarily for power boats 16′ (4.88M) to 35′ (10.66M) in length.

SuperSport Compass Features:

• 3-3/4″ (9.35cm) CombiDial
• Compensation Module Included (SR-CM2)
• 4 5/8″ (118 mm) to 4 13/16″ (122 mm) mounting hole
• Vertical Mounting Angle Through 40 Degrees.
• Blue LED Night Lighting
• Adapter plate available to retrofit existing HV-76 and HV-77 installations.
  • Adapter Plate: BK-0034-AP
• Protective Front Cover Included (BK-19-C)
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lb. (907g)

Notes:

12/24 Volt lighting is standard, 32 Volt option is available.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Read = Both | Mounting Style = Dash | Lubber Lines = Yes | Backlight = Yes | Load Equivalence # (LEN) = NONE | Output Frequency (mHz) = NONE | Output Type = NONE
