Description

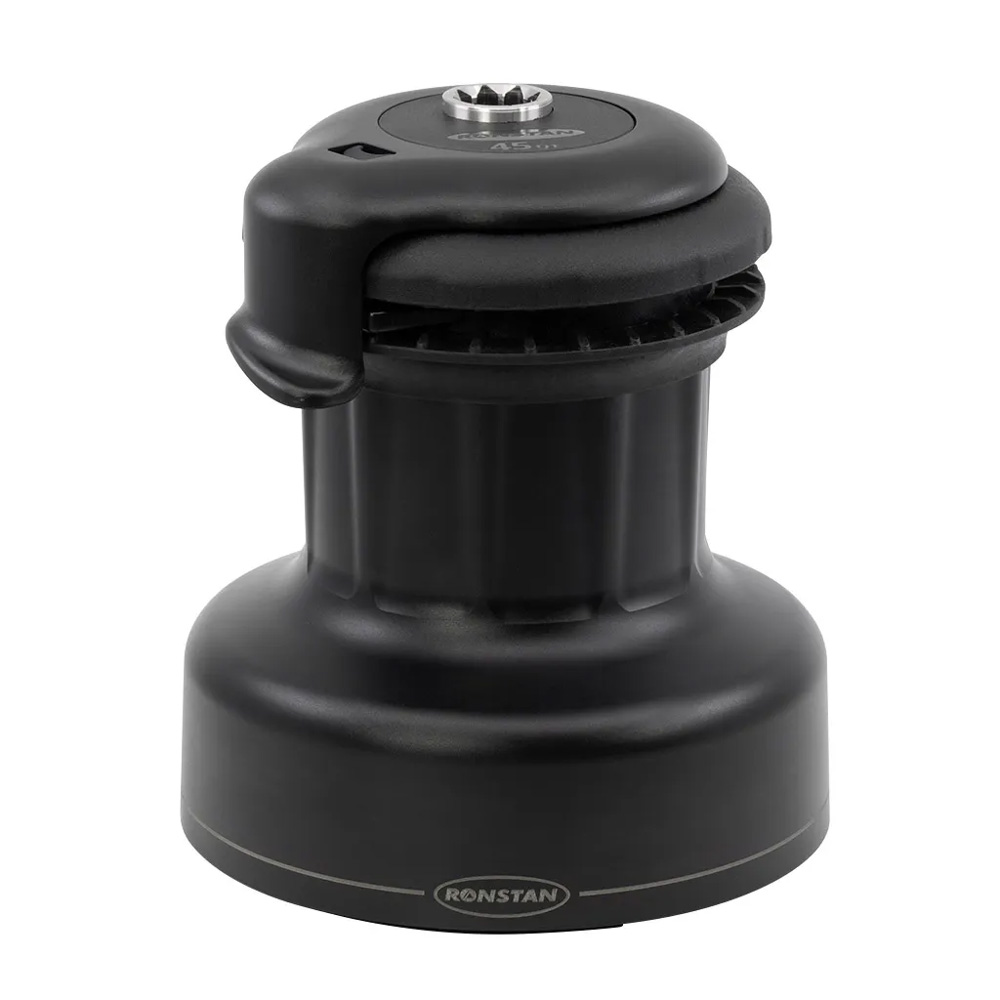

45QT Orbit Winch, 2-Speed, QuickTrim

Lightweight aluminium winch with QuickTrim™ self-tailer, 2 speeds, and Power Ribs™ for controlled line grip at all times.

Features:

• Sprung self-tailing jaws to accept 8-14mm line.
• QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
• Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
• Proven gearing configuration.
• Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
• 45QT and 50QT available as three-speed models.
• Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
• Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
• Low line entry due to gearing configuration geometry.

Specifications:

• Weight (lb): 11.91
• Max Pull (lb): 2980
• Gear ratio 1st speed: 3.0:1
• Gear ratio 2nd speed: 10.0:1
• Power ratio 1st speed: 13.4:1
• Power ratio 2nd speed: 45.5:1

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
