Description

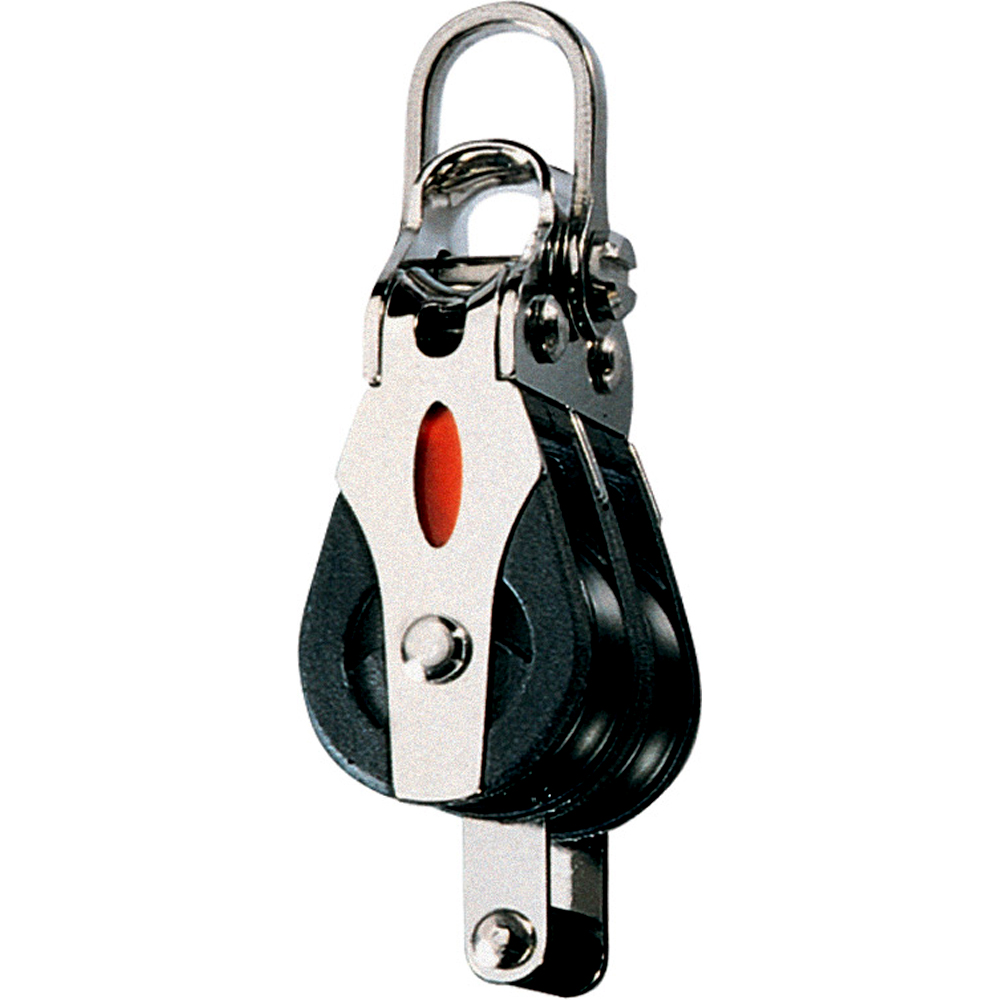

Series 20 Ball Bearing Block – Double – Becket – 2-Axis Shackle Head

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines

• Dinghy vangs

• Cunninghams

• Traveller controls

Materials:

• Stainless steel ball bearings

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4″)
Max. Rope Ø: 6mm(1/4″)
PinØ: 4mm(5/32″)
M.W.L.: 350kg(770lbs)
B. L.: 700kg(1,540lbs)
Weight: 44g(1.6oz)
