Description

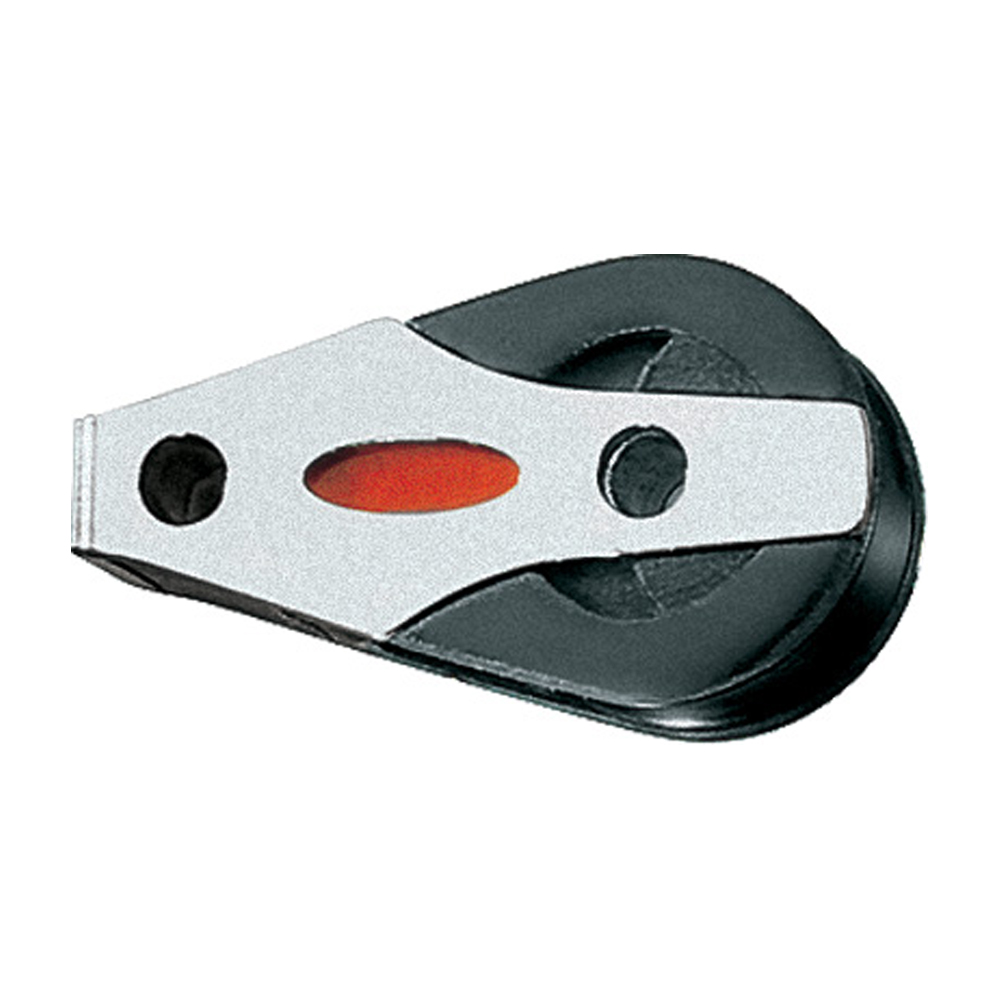

Series 20 Ball Bearing Block – Single – Cheek

Features:

• Low friction

• High static and dynamic load capacity

• Lightweight

• Double through-bolt mounting for maximum load capacity

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

Applications:

• Dinghy control lines

• Dinghy Vangs

• Cunninghams

• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves

• Stainless steel ball bearings

• Grade 316 stainless steel load strap and head fitting

• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 20mm(3/4″)
Max. Rope Ø: 6mm(1/4″)
M.W.L.: 250kg(550lbs)
B. L.: 550kg(1,210lbs)
Weight: 14g(0.5oz)
