Description

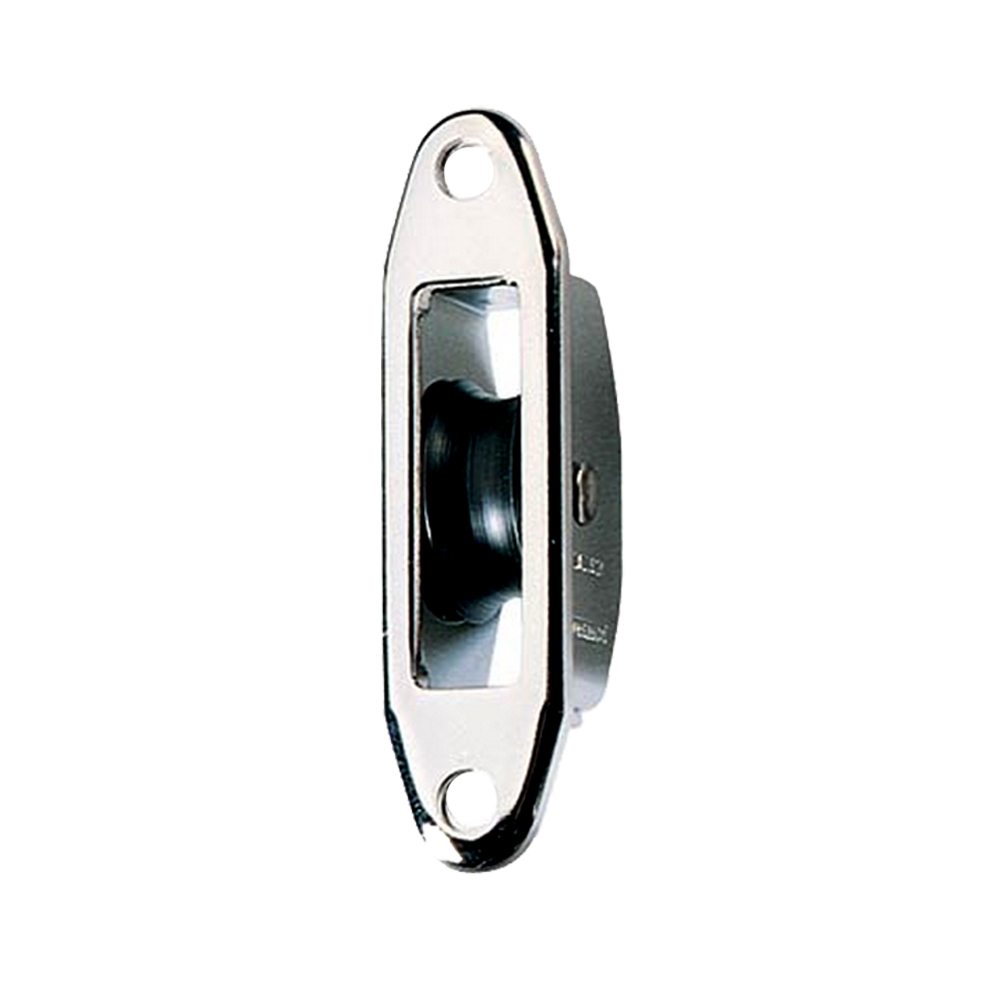

Series 20 Ball Bearing Block – Single – Exit Cover Plate

Features:

• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

Applications:

• Exit blocks minimise friction in lines passing through the deck or exiting masts and booms

Materials:

• UV Stabilized Acetal sheave

• Grade 316 stainless steel load strap and head fitting

Specifications:
Sheave Ø: 20mm(3/4″)
Max. Rope Ø: 6mm(1/4″)
PinØ: 4mm(5/32″)
M.W.L.: 250kg(550lbs)
B. L.: 1,000kg(2,200lbs)
Weight: 22g(0.8oz)
