Description

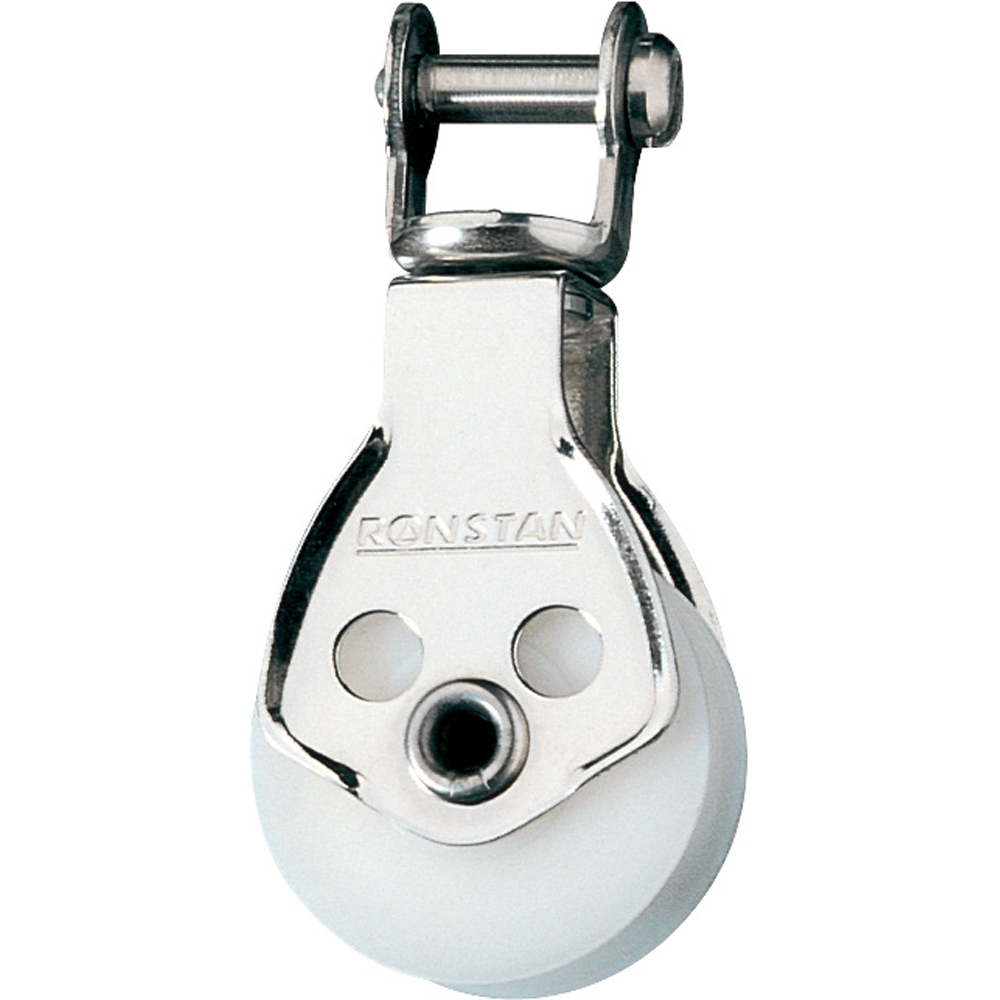

Series 25 Utility Block™ – Single – Swivel Shackle Head

Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.

Features:

• Lightweight durable construction

• Economical

• Maintenance free

Applications:

• Vang, cunningham and trapeze retriever systems on dinghies

• Leech line tackles, bunk adjusters, etc on larger boats

Materials:

• U.V. stabilized acetal sheaves

• Grade 316 Stainless Steel cheeks

Specifications:
Sheave Ø: 25mm(1″)
Max. Rope Ø: 6mm(1/4″)
Pin Ø: 4mm(5/32″)
M.W.L.: 150kg(330lbs)
B. L.: 300kg(660lbs)
Weight: 20g(0.7oz)
