Description

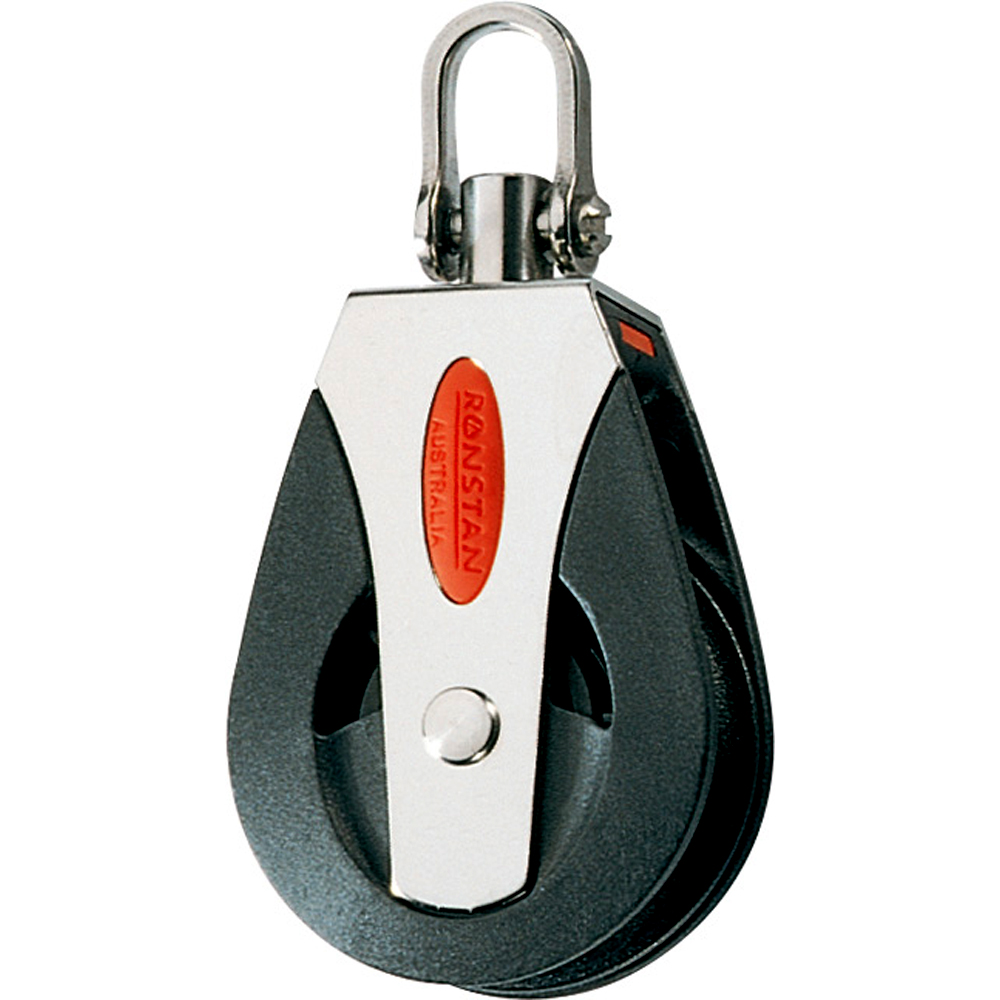

Series 50 High Load Block – Single – Universal Head

Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

Features:

• Exceptionally high working loads

• Lightweight

• Cheek cut-outs for easy bearing maintenance

• Suitable for both rope or wire

• Captive Lock™ universal head

• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet

• Spinnaker sheets

• Halyards and other primary applications on boats up to 10M(33′)

Materials:

• Nylatron® sheave

• Grade 316 stainless steel load strap and head fitting

• Impact and U.V. resistant, fiber reinforced Nylon cheeks

Specifications:
Sheave Ø: 50mm(2″)
Max. Rope Ø: 12mm(1/2″)
Max. Cable Ø:5mm(3/16″)
Max. Pin Ø: 5mm(3/16″)
M.W.L.: 800kg(1,760lbs)
B. L.: 1,500kg(3,310lbs)
Weight: 117g(4.1oz)
