Description

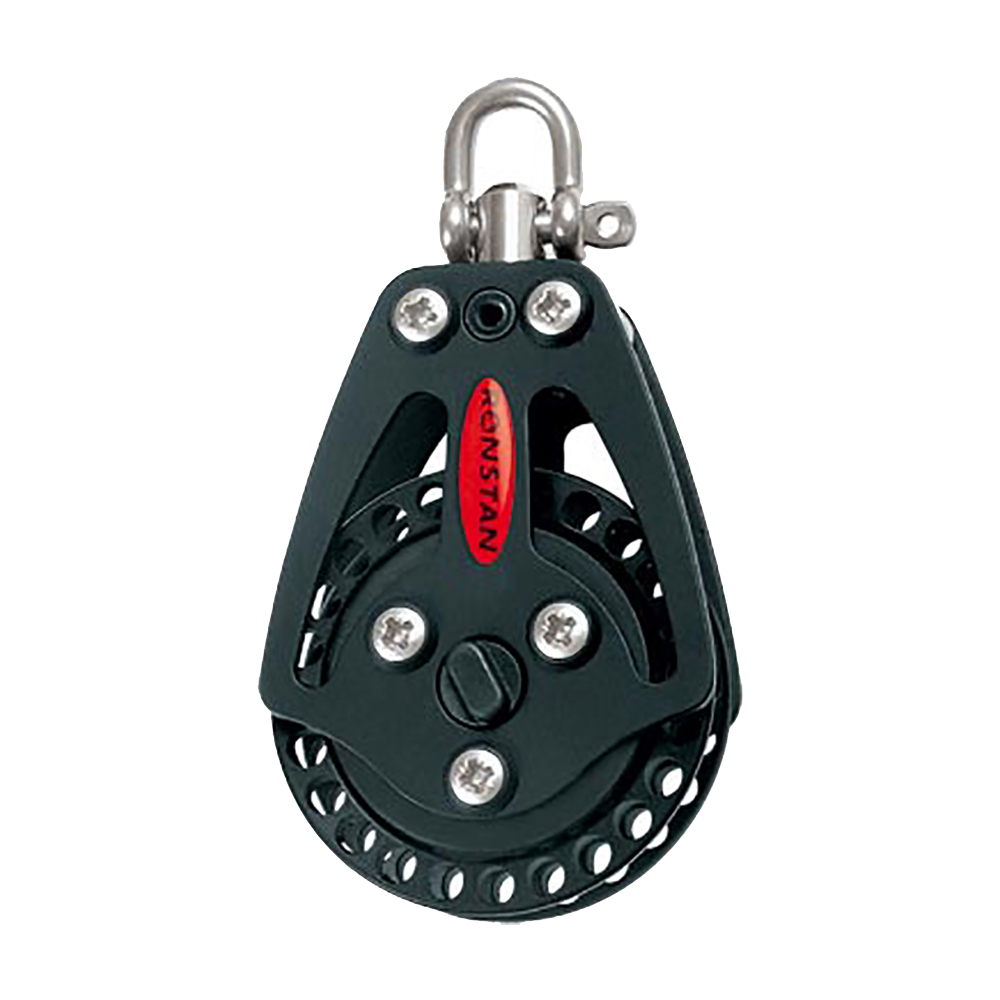

Series 75 Ultimate Ratchet – Single

The extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs – up to 20:1 holding power. Unrivaled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.

Features:

• Unrivaled 20:1 holding power
• Dual sided On-Off switch
• Ability to operate On/Off switch under load
• Low friction ball bearing system
• Lightweight
• Cheek cut-outs for easy bearing maintenance

Applications:

• Mainsheet on powerful dinghies and skiffs
• Series 60 mainsheet systems on sports boats using RF7 mainsheet swivel units
• Control line applications on larger yachts
• Spinnaker sheets on sports boats and small keel boats (lateral lead blocks)

Materials:

• Carbon black Acetal ball bearings
• Anodised aluminium sheave and cheek plates
• Torlon® ratchet pawl
• Grade 316 stainless steel forged shackle

Specifications:

• Sheave Ø: 3"
• Max. Rope Ø: 1/2"
• Pin Ø: 9/32"
• M.W.L.: 930lb
• B. L.: 4400lb
• Weight: 5.7oz
