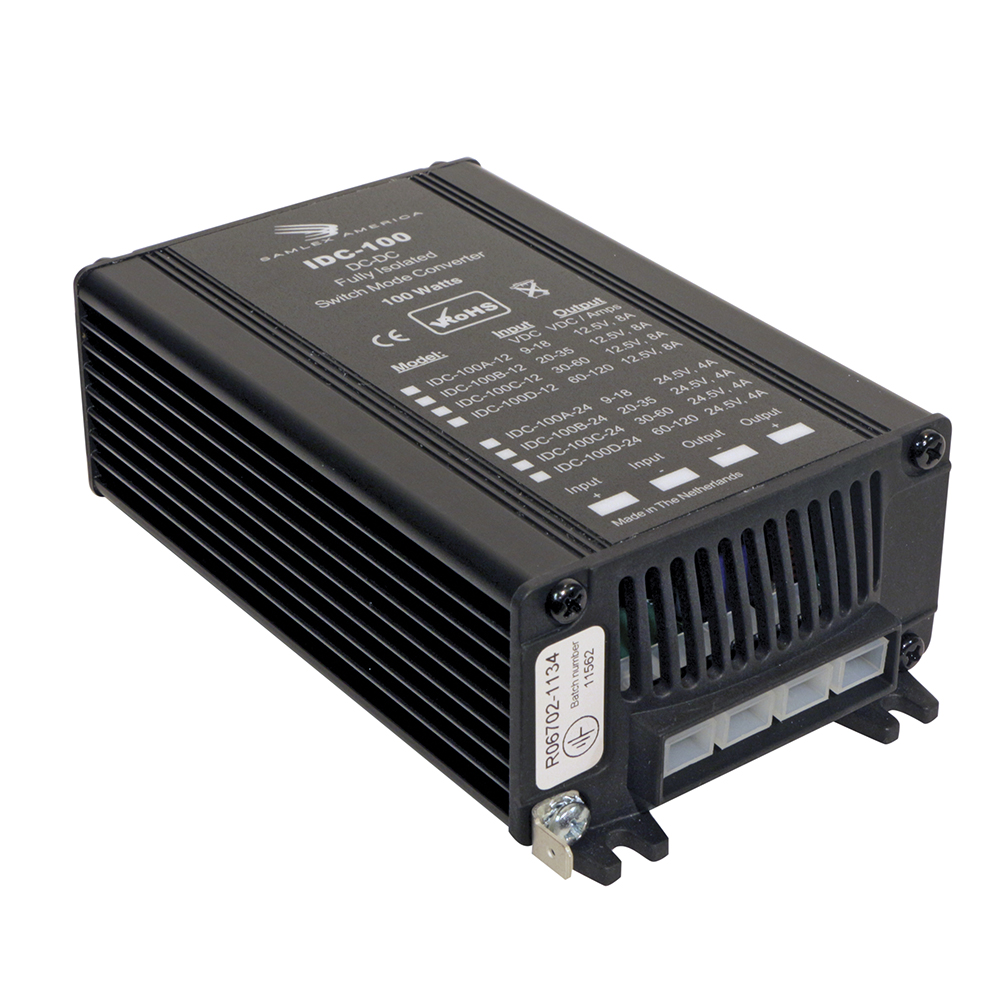

100W Fully Isolated DC-DC Converter – 8A – 30-60V Input – 12.5V Output
IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).
Features:
- Fully Isolated
- Short Circuit Protected
- Current Limited
- 2 Year Warranty
- CE Approved
Specifications:
- Input: 30-60 VDC
- Output: 12.5 VDC
- Amps: 8 Amps
- Weight: 1.2 (lbs)
- Weight: 0.54 (kg)
- Dimensions: 6 x 3.5 x 1.9 (in)
- Dimensions: 15.2 x 8.9 x 4.8 (cm)
- Safety: CE
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
