Description

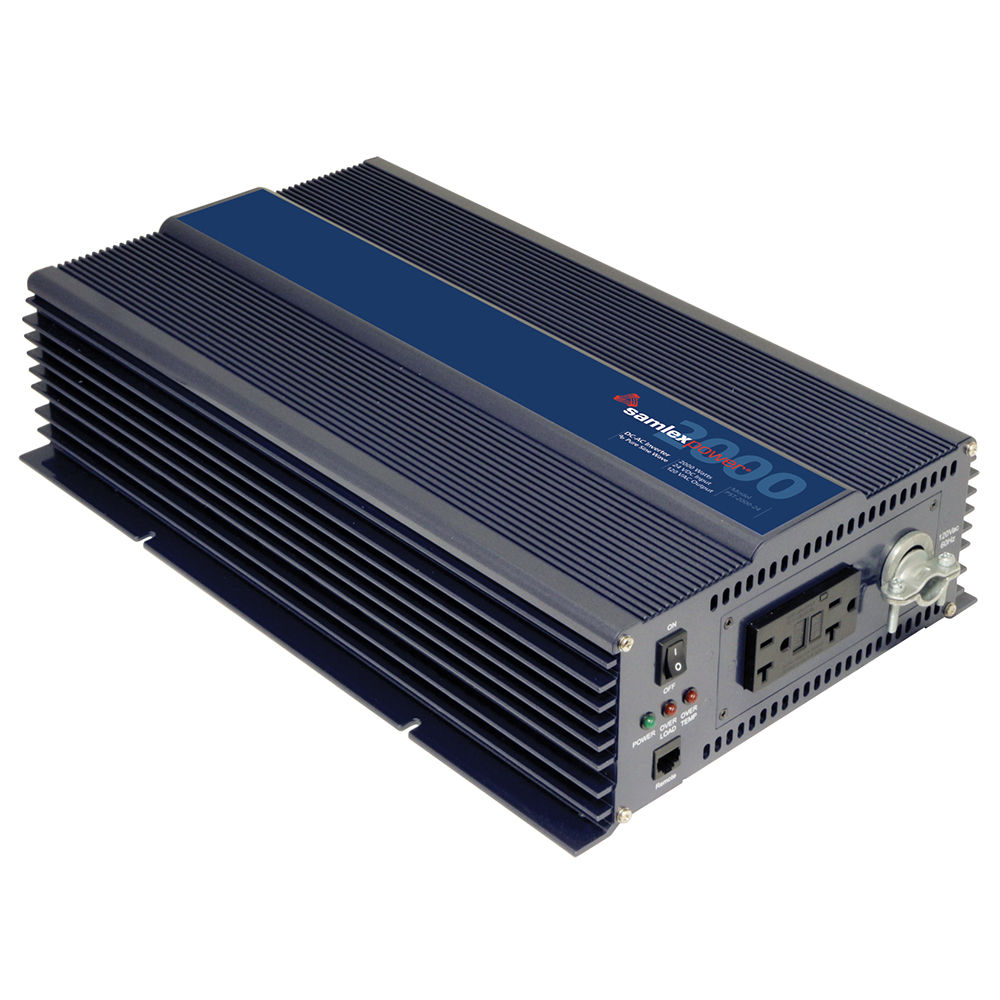

2000W Pure Sine Wave Inverter – 24V
PST Series (120 VAC)
This high efficiency DC-AC inverter converts 24 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- High efficiency
- Can be hard wired
- Temperature controlled cooling fan – reduces energy consumption
- Low interference
- Wide operating DC input range: 21.4 – 33.0 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-200
- Safety certified to UL standards, FCC compliant
Specifications:
- Input: 24 VDC
- Output: 120 VAC
- Watts: 2000
- Surge: 3500 Watts
- Remote Control: RC-200 sold separately
- Weight: 15.6 (lbs)
- Weight: 7.1 (kg)
- Dimensions: 10.35 x 18.43 x 4.16 (in)
- Dimensions: 263 x 468.2 x 105.6 (mm)
- Safety: ETL to UL Standard
- Warranty: 2 Year Limited
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Inverter Cont. Output Wattage = 2000w | AC Connection Type = NONE | DC Connection Type = NONE | GFCI = NONE | Outlet Qty = 2 Duplex GFCI | Inverter Surge Rating = NONE | Inverter Input Voltage = 24v | Inverter Output Voltage = NONE | Waveform = Pure Sine Wave
