Description

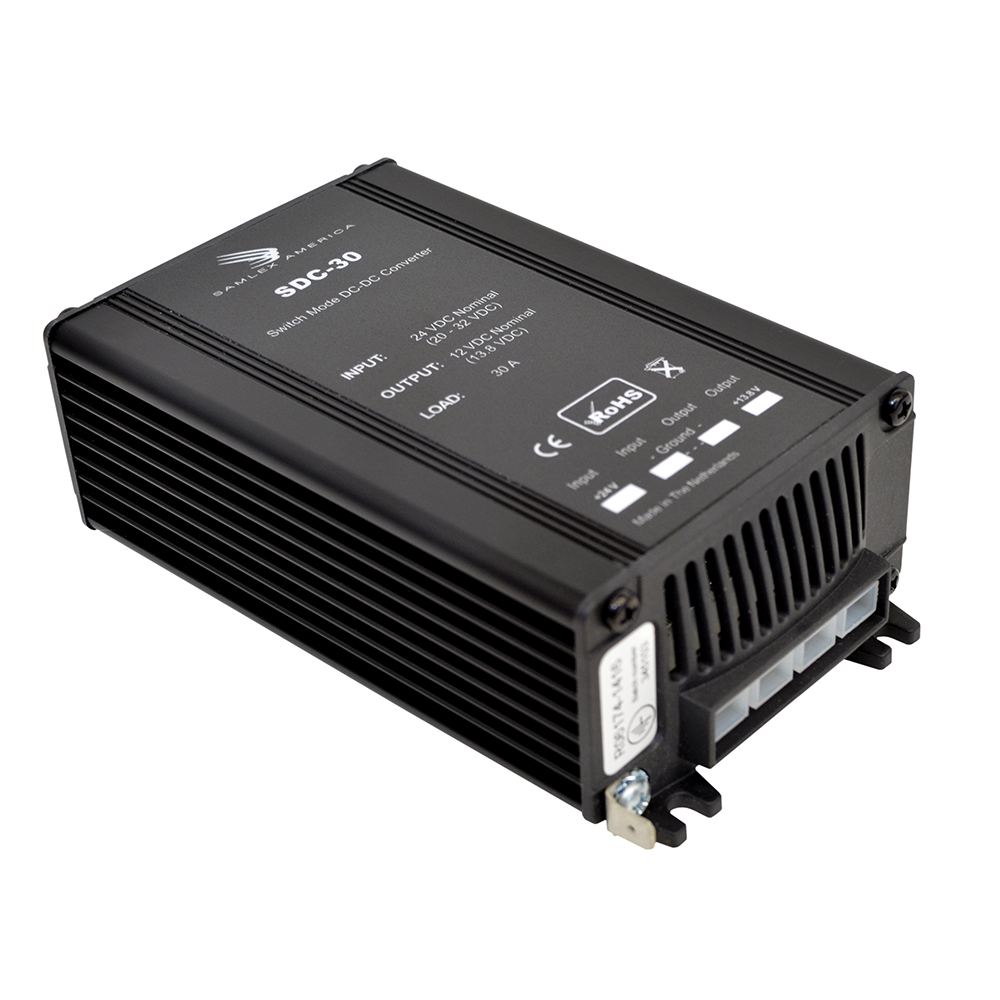

30A Non-Isolated Step-Down 24VDC-12VDC Converter
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.
Features:
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Cycle by cycle current limiting circuit
- Overvoltage protection
- Short circuit protection
Specifications:
- Input: 20-32 VDC
- Output: 13.8 VDC
- Amps: 30 Amps
- Weight: 1.2 (lbs)
- Weight: 0.54 (kg)
- Dimensions: 6 x 3.5 x 1.9 (in)
- Dimensions: 15.2 x 8.9 x 4.8 (cm)
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
