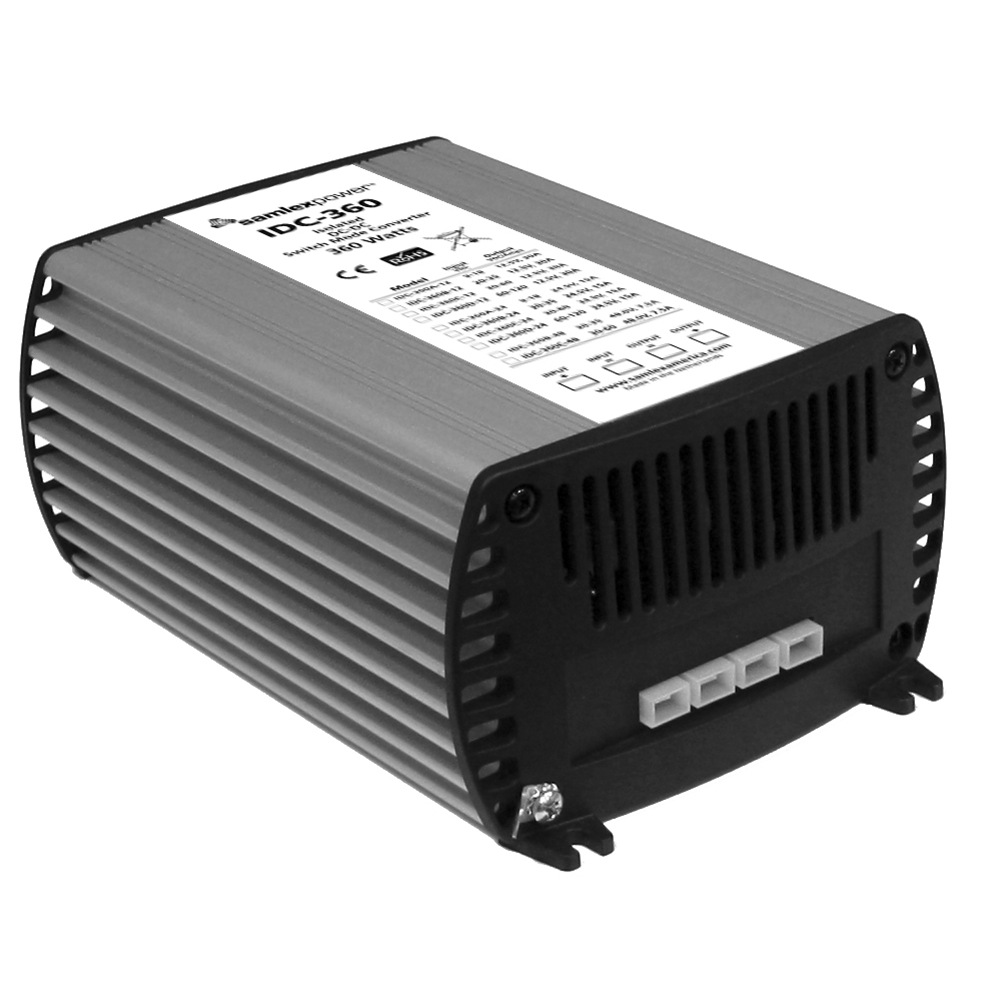

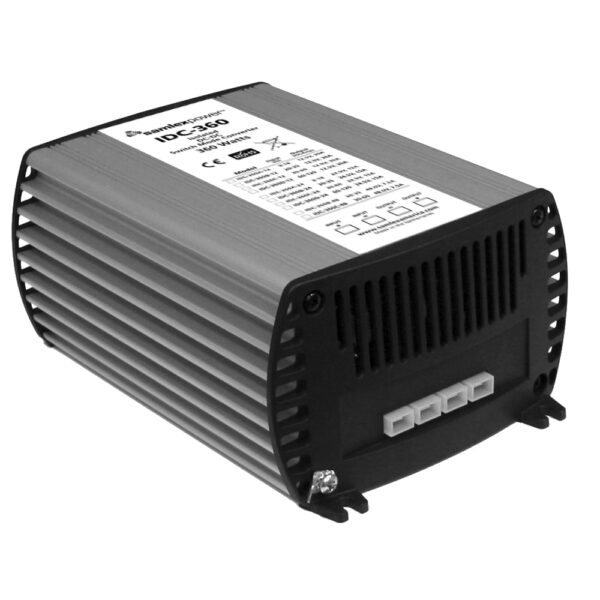

360W Fully Isolated DC-DC Converter – 30A – 20-35V Input – 12.5V Output
IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.
Features:
- Fully Isolated
- Short Circuit Protected
- Current Limited
- CE Approved
- 2 Year Warranty
Specifications:
- Input: 20-35 VDC
- Output: 12.5 VDC
- Watts: 360
- Amps: 30 Amps
- Weight: 3.1 (lbs)
- Weight: 1.4 (kg)
- Dimensions: 5.23 x 7.5 x 3.27 (in)
- Dimensions: 132.8 x 190.5 x 83 (mm)
- Safety: CE
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
