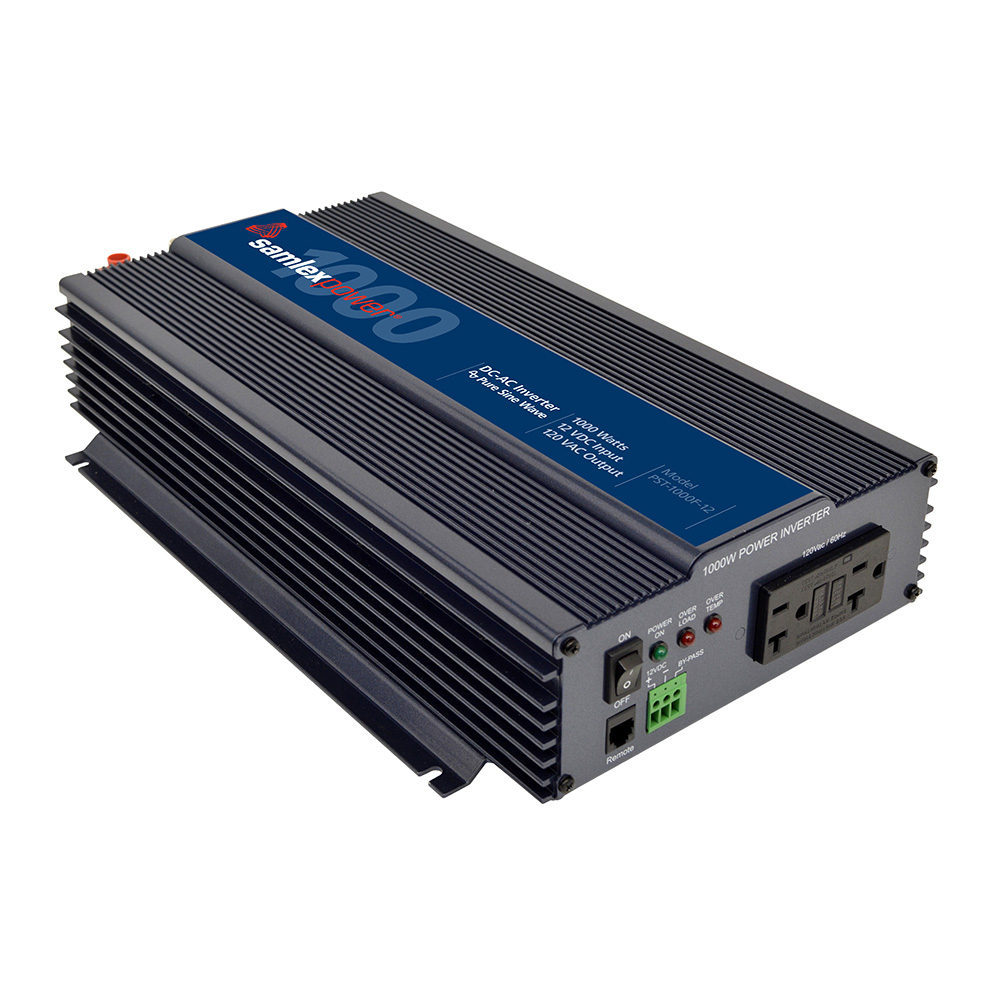

PST-1000F-12 1000W Pure Sine Wave Inverter – 12V Input 120VAC Output
This high-efficiency DC-AC inverter converts 12 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include Ignition ON/OFF – 1 wire input, overload protection, low battery alarm / shut down, and low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
Features:
- Wide operating temperature range: -13°F to 131°F / -25°C to +55°C
- Wide operating DC input range: 10.7 – 16.5 VDC
- Ignition ON/OFF – 1 wire input
- High efficiency and low interference
- Temperature controlled cooling fan – reduces energy consumption
- Commercial grade design suitable for heavy-duty loads, long periods of continuous operation, and emergency backup
- UPC – Universal Protection Circuit: low voltage, over-voltage, over-temperature, overload, and short circuit.
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-15A
- Comes with pin-type battery cable lugs
- 3-Year Limited Warranty
Specifications:
- Input: 12 VDC
- Output: 120 VAC
- Watts: 1000 Watts
- Surge: 2000 Watts
- Remote Control: RC-15A (sold separately)
- Weight: 8.8 (lbs)
- Weight: 4.0 (kg)
- Dimensions: 9.37 x 15.63 x 3.23 (in)
- Dimensions: 238 x 397 x 82 (mm)
- Safety: ETL to UL Standard
