Description

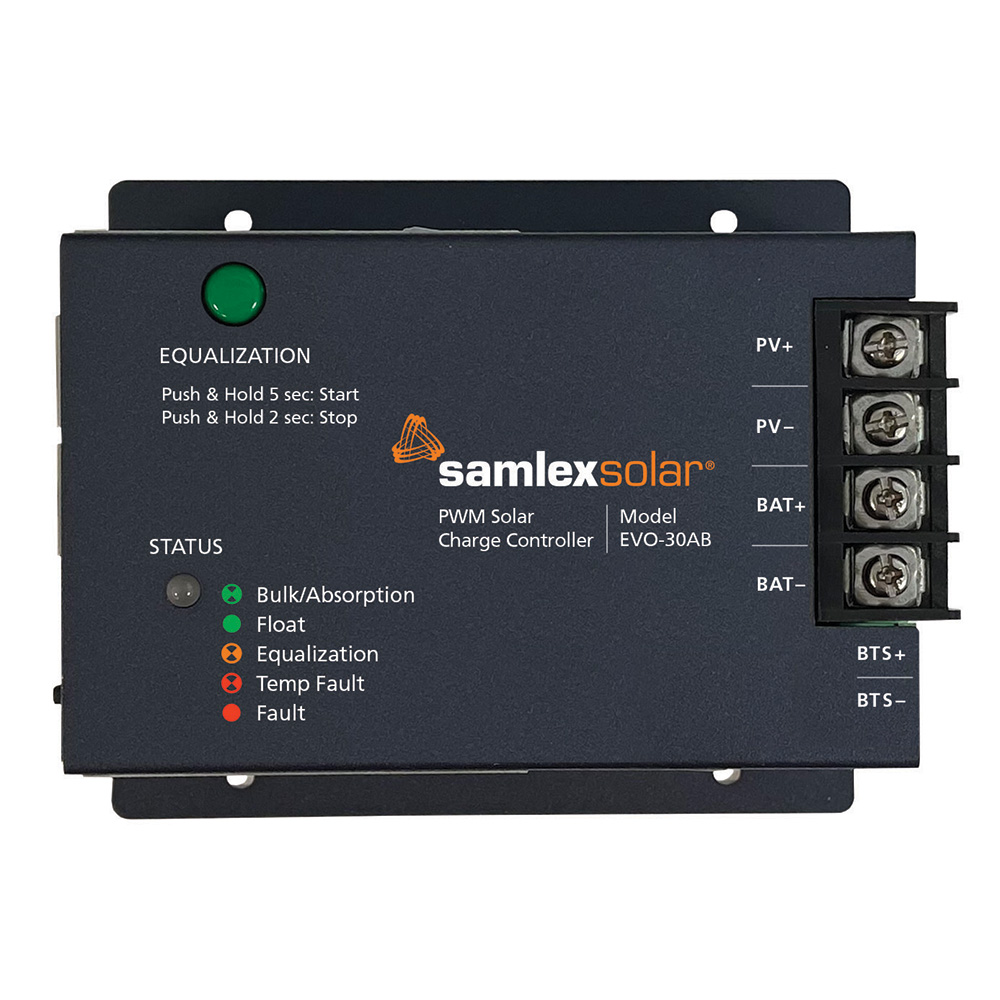

Solar Charge Controller – 12/24 PWM – 30 AMP
Use the Samlex EVO-30AB Charge Controller as a stand-alone 30 amp solar charge controller or expand the functionality of the EVO-RC-PLUS as the central display for both your EVO inverter/charger and your solar system.
Features:
- When connected to the EVO™ inverter/charger, the EVO-30AB will follow the programming set in the unit.
- Add the EVO-RC-PLUS and it will display the status for both the EVO™ inverter/charger and solar system from ONE remote display
- Compatible with most battery types including Lead Acid and Lithium-Ion (LiFePO4) batteries.
- Manage multiple panels up to 600W in a 12V system, or up to 1000W in a 24V system under specified conditions
Additional Features:
- Optional 30AB-TS Battery Temperature Sensor available.
- 30 Amp charging capacity
- 8 charge settings for different batteries
- Selectable battery equalization option
- Use with 12/24V batteries
- Compatible with EVO-RC-PLUS Remote Display (Optional)
- Increased functionality when used with an EVO™ Series Inverter/Charger
Specifications:
- Input: 12V / 24V
- Amps: 30 Amp
- Weight: 0.8 (lbs)
- Weight: 0.36 (kg)
- Dimensions: 4.81 x 1.87 x 4.15 (in)
- Dimensions: 12.21 x 4.75 x 10.54 (cm)
Applications:
- Recreation vehicles
- Service vehicles
- Boats
- Fieldwork
- Telecommunications
- Mobile offices
- Construction sites
