Description

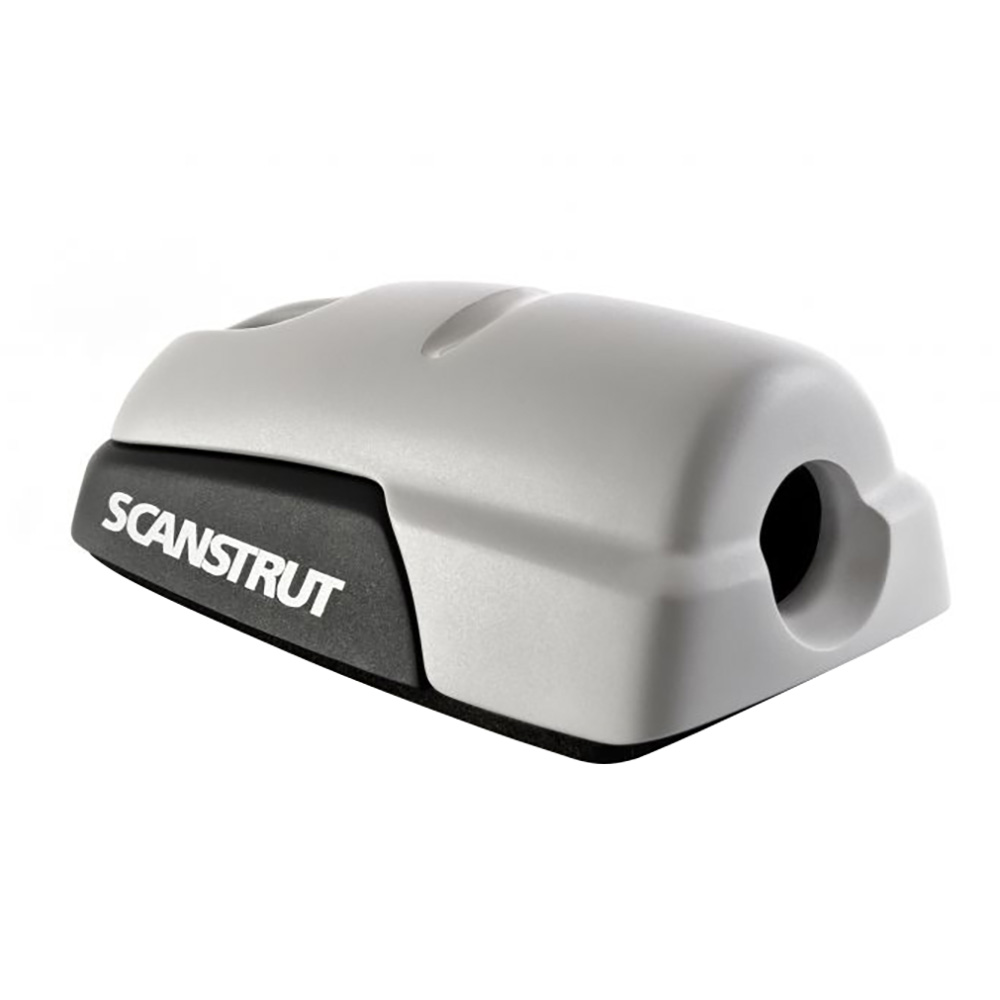

DS-H10 Horizontal Cable Seal – Grey
This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables. A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.
Features:
- Watertight installation – 100% waterproof with an IPX68 rating
- Easy and reliable installation – each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
- No Need to Remove Cable Connectors – split-seal option does not require connector removal during install.
- The low-profile construction is impact resistant and provides extra protection from water.
Technical Specifications:
- Fits cable size (diameter) – .24″ to .39″ (6 – 10 mm)
- Height – 1.06″ (27 mm)
- Width – 1.75″ (44.5 mm)
- Color – Grey
- Orientation – Horizontal
- Material – Stainless Steel
In the Box:
- Cable seal
- Mounting hardware
- Installation manual
*Sold as an Individual
Type = Deck Seal
