Scanstrut Flip Pro Duo – USB-A & USB-C w/12V Power Socket

100092
Scanstrut

$72.95 $43.09

13 in stock
Qty :
,

Description

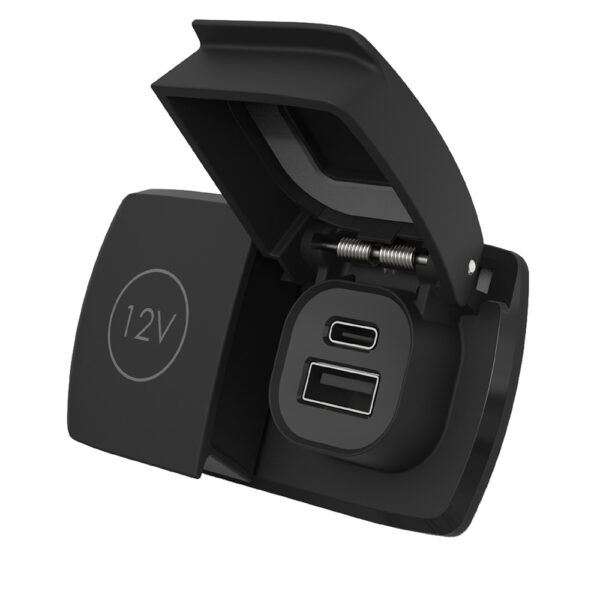

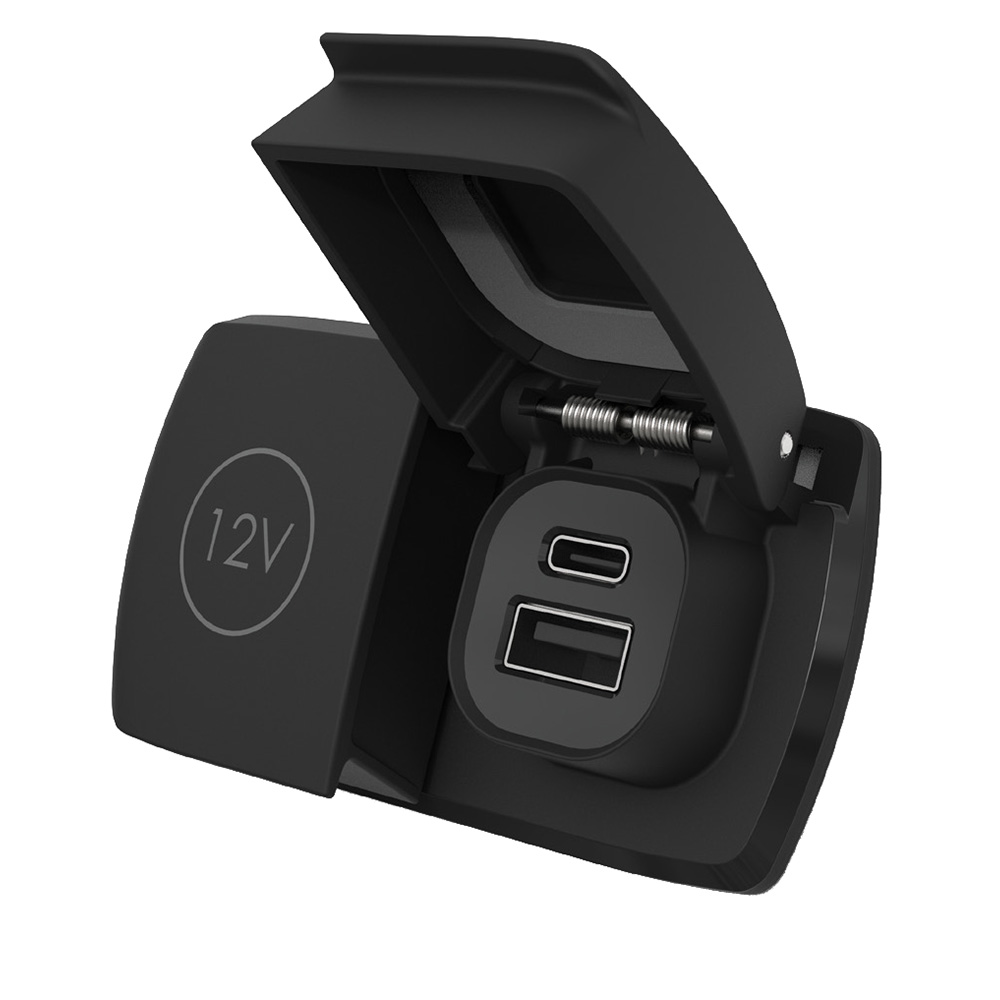

Flip Pro Duo – USB-A & USB-C with 12V Power Socket

Combining the features of the high-power Flip Pro USB-A / C charger and 12V power sockets into a beautiful multi-power solution. When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Universal:

  • Universal fit for any USB-A & C connectors
  • Fast charge (60W max) up to 2 devices at a time

Marine Ready:

  • IPX4 waterproof with the cover closed
  • UV resistant
  • 316 stainless steel hinge and spring

Installation:

  • Easy Install, using a standard Ø32mm (1.25 in.) hole saw

Specifications:

  • Watt Max. Power: 120 -150W max power, 12V system only (12V Socket)
  • Input Voltage: 10-32V DC
  • Input Current Max: 6A (10A fuse recommended)
  • Output Type C (12V System): 5V 3A, 9V 3A, and 12V 3A MAX
  • Output Type C (24V System): 5V 3A, 9V 3A, 12V 3A, 15V 3A, and 20V 3A MAX
  • Output Type A Max: 5V 1.5A, 9V 1.5A, and 12V 1.5A/3A MAX
  • Waterproof Rating: IPX4
  • Standby Draw: 0.01W
  • Certification: CE, FCC, UKCA, C-Tick, and ROHS

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Weight 0.3 lbs
Dimensions 5 × 5 × 2 in
Model Number SC-MULTI-F2
UPC 5060114798489
