Scanstrut SC103 Radar Pole Mount – 6'

36177
Scanstrut

$1699.00 $1041.70

0 in stock
Qty :
,

Description

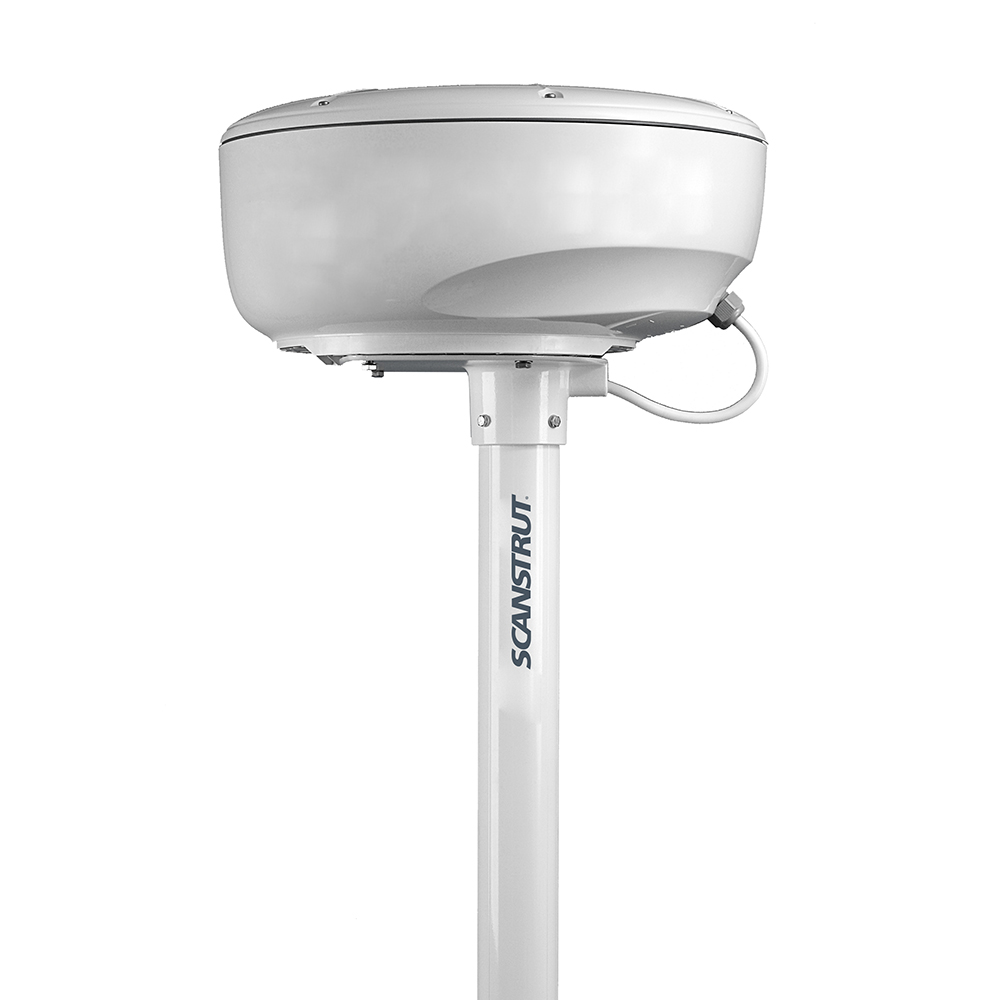

SC103 Radar Pole Mount – 6′

Totally universal, the Scanstrut SC103 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

  • Furuno – 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18″), NavNet (24″), SC33 Sat Compass radars
  • Glomex – Pandora v8001, RHEA V8100, Urania V9331, V9000 and V9001 series radars
  • Humminbird – AS 21RD4KW radar
  • Intellian – FB150 in i2, FB250 in i2, FB250R in i2, i1 radars
  • Interphase – Mini RE-1, RE-8, RE-9 radars
  • JRC – 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000,  JMA 2343 / 5104 [Radome: NKE-2042] radars
  • Koden – 2kW 12″, 4kW [RB715A] radar
  • KVH – TracVision M1, TracVision TV1 radar
  • Lorenz – Lorenz 2kW
  • Lowrance – LRA-1800 / RB714A / DX42, LRA-2400 HD radars
  • Majestic – SATMAR32, SATMAR32D, SATMAR37D
  • Navman – 8000 Series [8084/8120] 18″, 8000 Series [8084/8120] 24″ radars
  • Nobeltec – 2kW (20″), 4kW [IR2-4D 25″ 4Kw] radars
  • Northstar – M series/8000i (18″), M series/8000i (24″) radars
  • Raymarine –  33STV radar
  • Seiwa – SWR-1, SWR-8, SWR-9 radars
  • Simrad – GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
  • Sitex – MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 radars
  • Techmarine – T-72.01, T-72.02, T-72.04 radars

Features:

  • Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
  • Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
  • Supplied with two support modules providing maximum fore / aft and sideways bracing
  • Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

  • Radar Type – Dome
  • Material – Aluminium
  • Height – 6.4″ (1.9M)
  • Mounting Type – Pole Mount

In the Box:

  • Pole mount
  • Top plate
  • Deck strut
  • Mounting hardware
  • Installation manual

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = Pole Mount | Construction = Aluminum | Height = 6

Additional information

Model Number SC103
