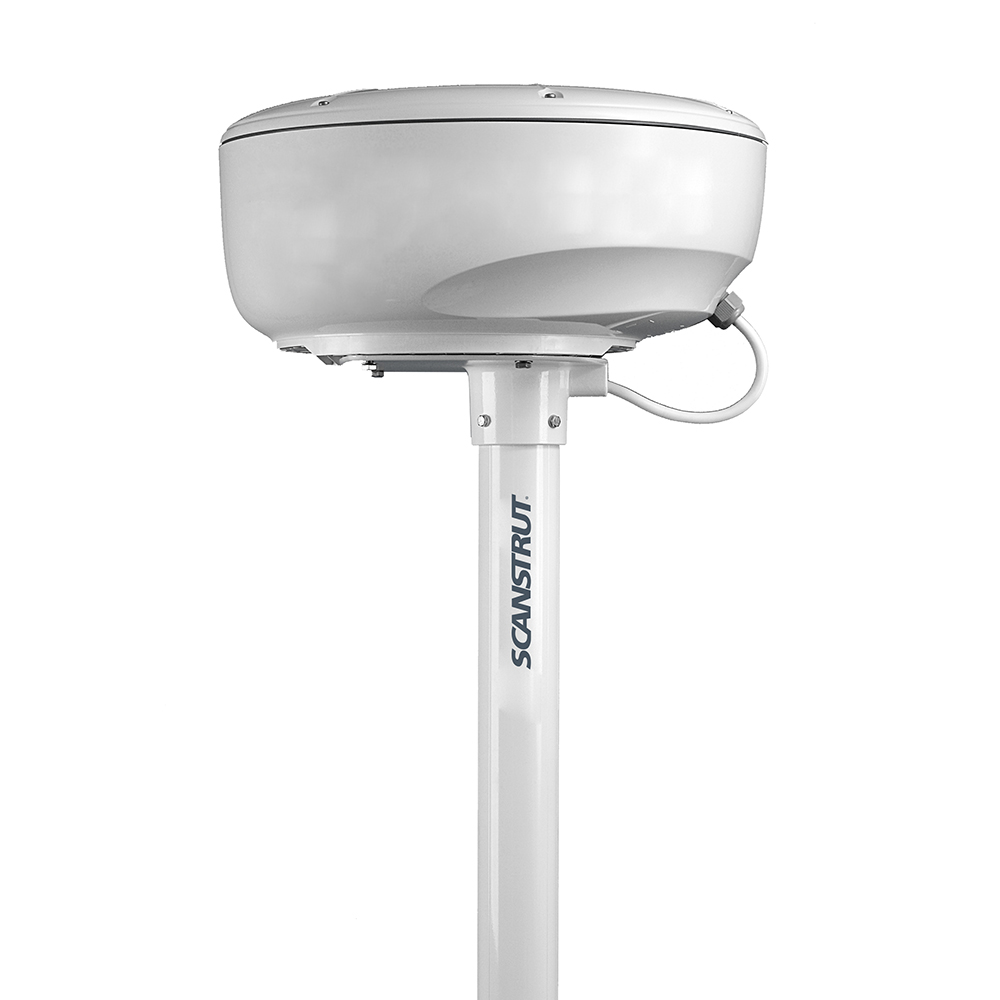

SC104 Radar Pole Mount – 8′

Totally universal, the Scanstrut SC104 Pole Mount installs your radar onto the deck or transom of your boat.

Supplied as a complete kit, you will have everything you need for a quick and easy installation.  The anodized aluminium base gives choice when deciding where you wish to install the pole mount, it has a rotation of 360 degree that enables the pole to be installed on both sloping transoms and level decks.  The Pole features two cable channels with a cover strip to hold cables in place and out of view.

Made from marine-grade aluminium and coated with a 4-step marine paint system, making sure that your pole mount stays looking its best year in, year out, whatever the oceans throw at it.

Compatible with:

• Furuno – 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS42DL, DRS42DL+, DRS4D / DRS4D-NXT, DRS4W, NavNet (18″), NavNet (24″), SC33 Sat Compass radars
• Glomex – Pandora v8001, RHEA V8100, Urania V9331, V9000 and V9001 series radars
• Humminbird – AS 21RD4KW radar
• Intellian – FB150 in i2, FB250 in i2, FB250R in i2, i1 radars
• Interphase – Mini RE-1, RE-8, RE-9 radars
• JRC – 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000,  JMA 2343 / 5104 [Radome: NKE-2042] radars
• Koden – 2kW 12″, 4kW [RB715A] radar
• KVH – TracVision M1, TracVision TV1 radar
• Lorenz – Lorenz 2kW
• Lowrance – LRA-1800 / RB714A / DX42, LRA-2400 HD radars
• Majestic – SATMAR32, SATMAR32D, SATMAR37D
• Navman – 8000 Series [8084/8120] 18″, 8000 Series [8084/8120] 24″ radars
• Nobeltec – 2kW (20″), 4kW [IR2-4D 25″ 4Kw] radars
• Northstar – M series/8000i (18″), M series/8000i (24″) radars
• Raymarine –  33STV radar
• Seiwa – SWR-1, SWR-8, SWR-9 radars
• Simrad – GB40 / NX40/45 / NSE8/12 / RB712A / DX42S, GB40 / NX40/45 / NSE8/12 DX64S radars
• Sitex – MDS -1, MDS -8, MDS -9, MDS-12, NKE-1066 radars
• Techmarine – T-72.01, T-72.02, T-72.04 radars

Features:

• Adjustable base, able to rotate 360°.  Base enables the pole to be installed on both sloping transoms and level decks.
• Unique pole extrusion accommodates two (2)  cable channels with a cover strip to hold cables in place
• Supplied with two support modules providing maximum fore / aft and sideways bracing
• Easily removed for racing or winter storage, leaving just low profile base on deck

Technical Specifications:

• Radar Type – Dome
• Material – Aluminium
• Height – 8.3″ (2.5M)
• Mounting Type – Pole Mount

In the Box:

• Pole mount
• Top plate
• Deck strut
• Mounting hardware
• Installation manual

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Construction = Aluminum | Type = Pole Mount | Height = 8
