Schaefer Series 5 Flat Base Cheek Block – Stainless Steel Cheeks

74727
Schaefer Marine

$111.70 $75.18

4 in stock
Qty :
,

Description

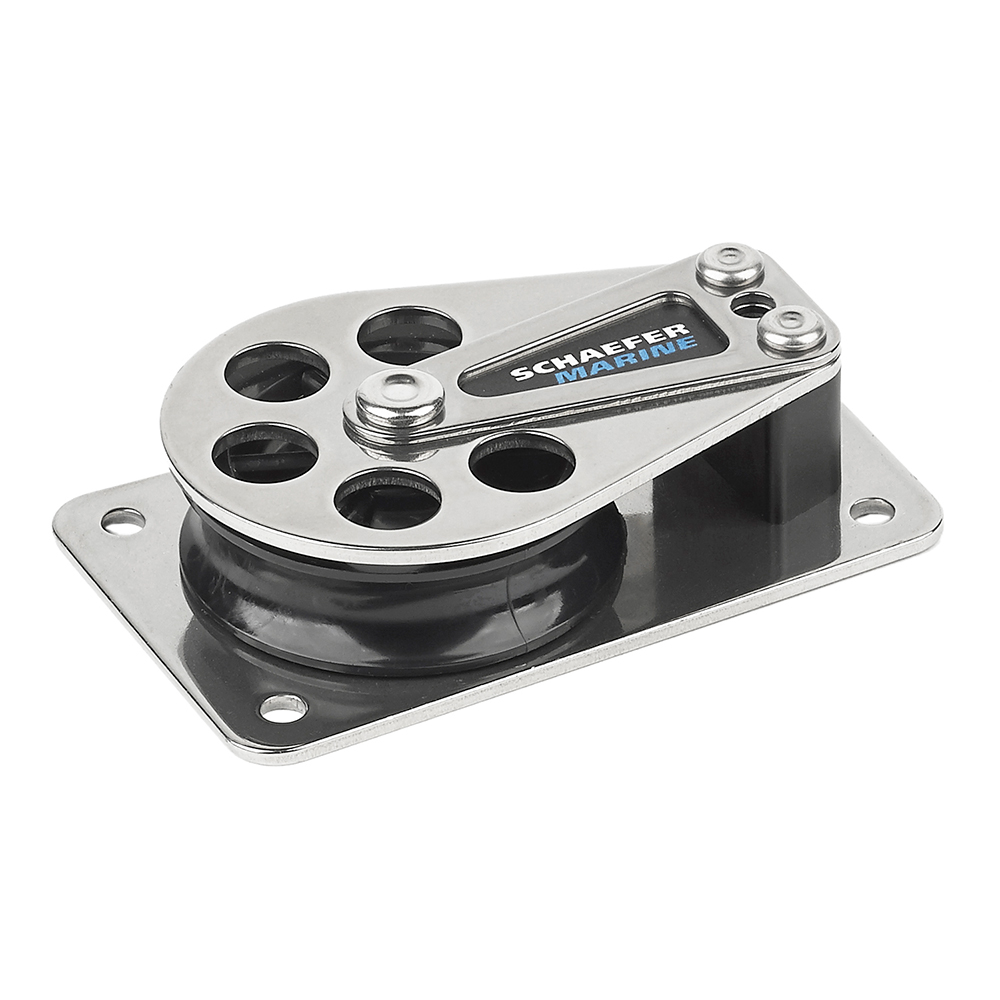

Series 5 Flat Base Cheek Block – Stainless Steel Cheeks

Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Diameter 2″ (51 mm)
  • Max. Line 7/16″ (11 mm)
  • Length 3-5/8″ (92 mm)
  • Width 2-7/32″ (57 mm)
  • Height 7/8″ (22 mm)
  • Fasteners (4) #10 – RH (5 mm)
  • C/C 3″ (76 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 6.9 oz. (196 g)
  • Max Line 7/16″ (11mm)

Additional information

Weight 0.5 lbs
Dimensions 5 × 3 × 1 in
Model Number 505-11
UPC 740507011962
