Schaefer Spring Loaded/Lined Slide/Aluminum f/1″ T-Track

74718
Schaefer Marine

$239.55 $161.24

0 in stock
Qty :
,

Description

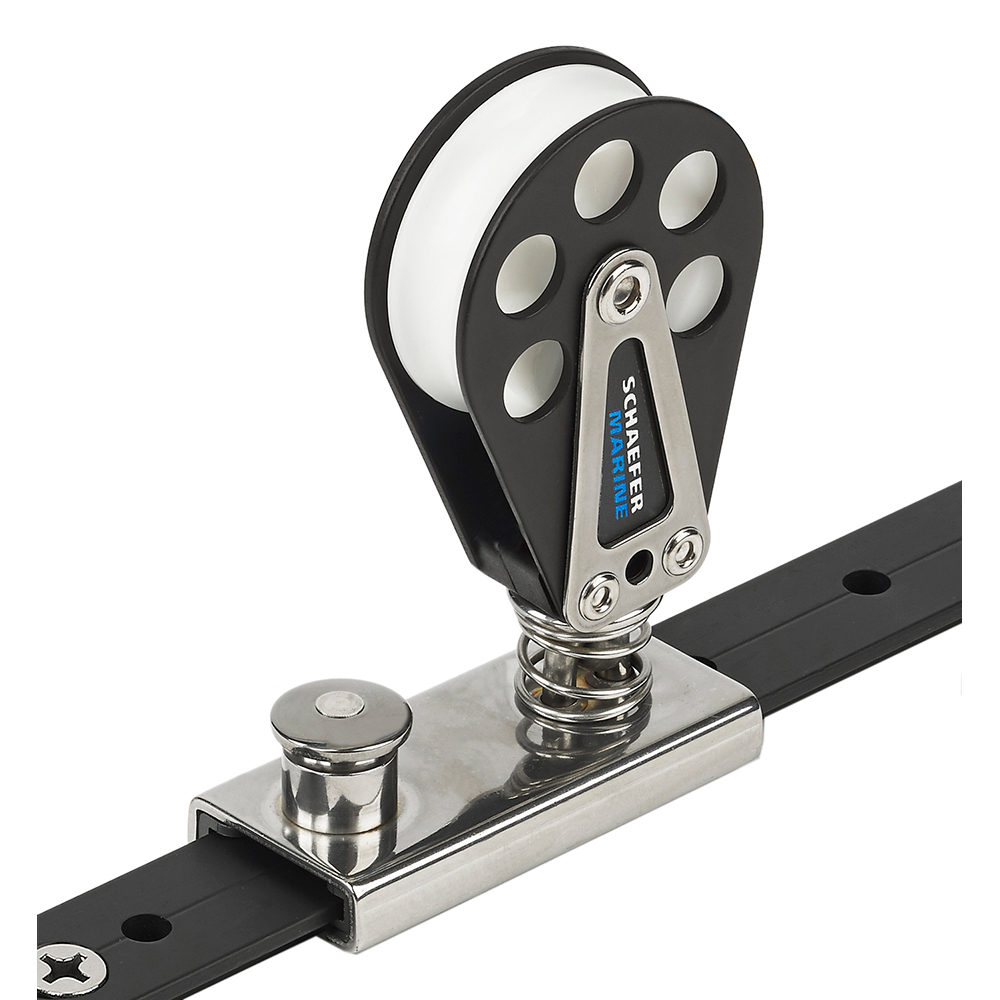

Spring Loaded/Lined Slide/Aluminum for 1″ T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1″ x 1/8″ (25 mm x 3 mm)
  • Max. Boat Length- 27′ (8m)
  • Max. Boat Weight- 5000 lbs. (2270 kgs)
  • Sail Area- 315 sq. ft (29 m2)
  • Sheave Diameter 2″ (51 mm)
  • Max Line 7/16″ (11 mm)
  • Length 3″ (76 mm)
  • Width 1-1/4″ (31 mm)
  • Height 4-5/32″ (105 mm)
  • Bearing Height 2-7/32″ (56 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 7.0 oz. (198 g)

Additional information

Weight 0.55 lbs
Dimensions 5 × 3 × 2 in
Model Number 504-82
UPC 740507020902
