Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4″ T-Track

74742
Schaefer Marine

$348.55 $234.61

0 in stock
Qty :
,

Description

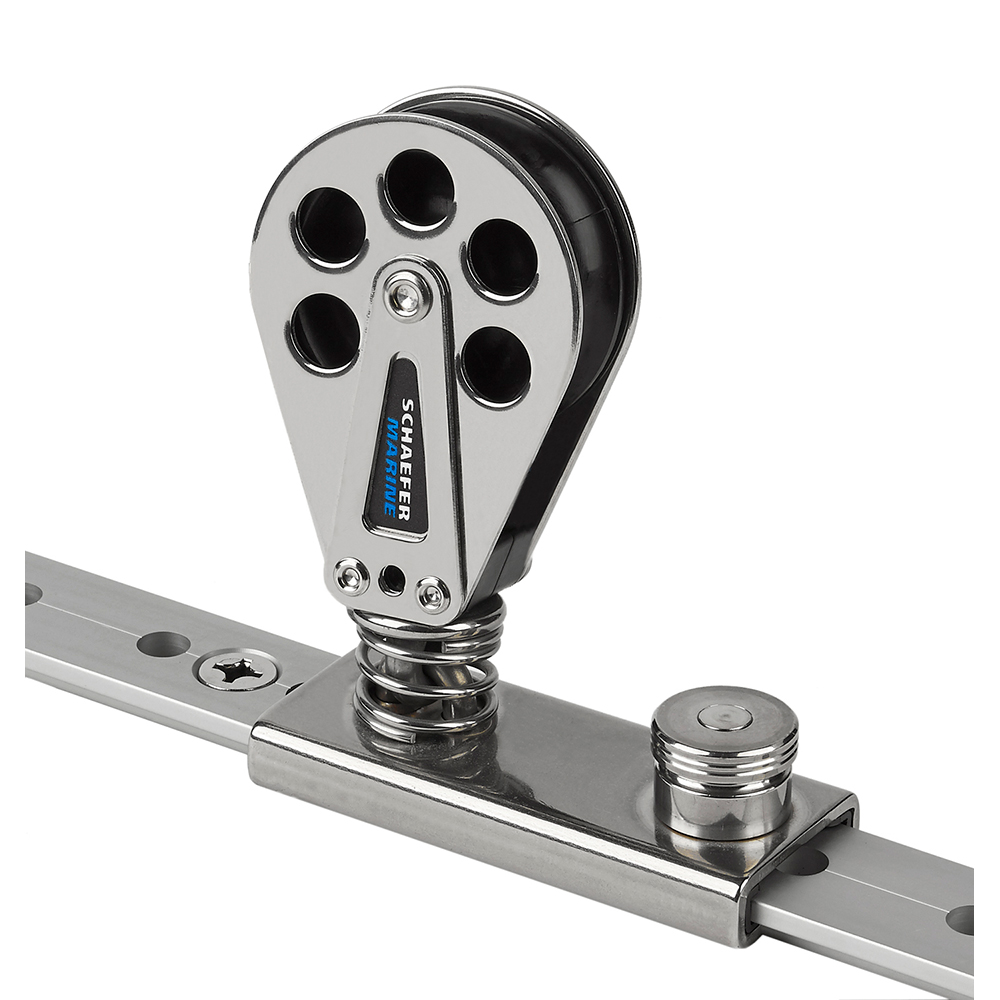

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4″ T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm)
  • Max. Boat Length 33′ (10 m)
  • Max. Boat Weight 12000 lbs. (5455 kg)
  • Max. Sail Area 520 sq. ft. (48 m2)
  • Sheave Diameter 2-3/8″ (60 mm)
  • Max Line 1/2″ (12 mm)
  • Length 4″ (102 mm)
  • Width 1-9/16″ (39 mm)
  • Height 4-15/16″ (126 mm)
  • Bearing Height 2-3/8″ (67 mm)
  • SWL 2250 lbs. (1020 kg)
  • Weight 14 oz. (397 g)

Additional information

Weight 1.15 lbs
Dimensions 5 × 4 × 2 in
Model Number 705-92
UPC 740507021305
