Schaefer Twin Sheet Lead 25x3MM – Black

91831
Schaefer Marine

$361.90 $237.50

2 in stock
Qty :
,

Description

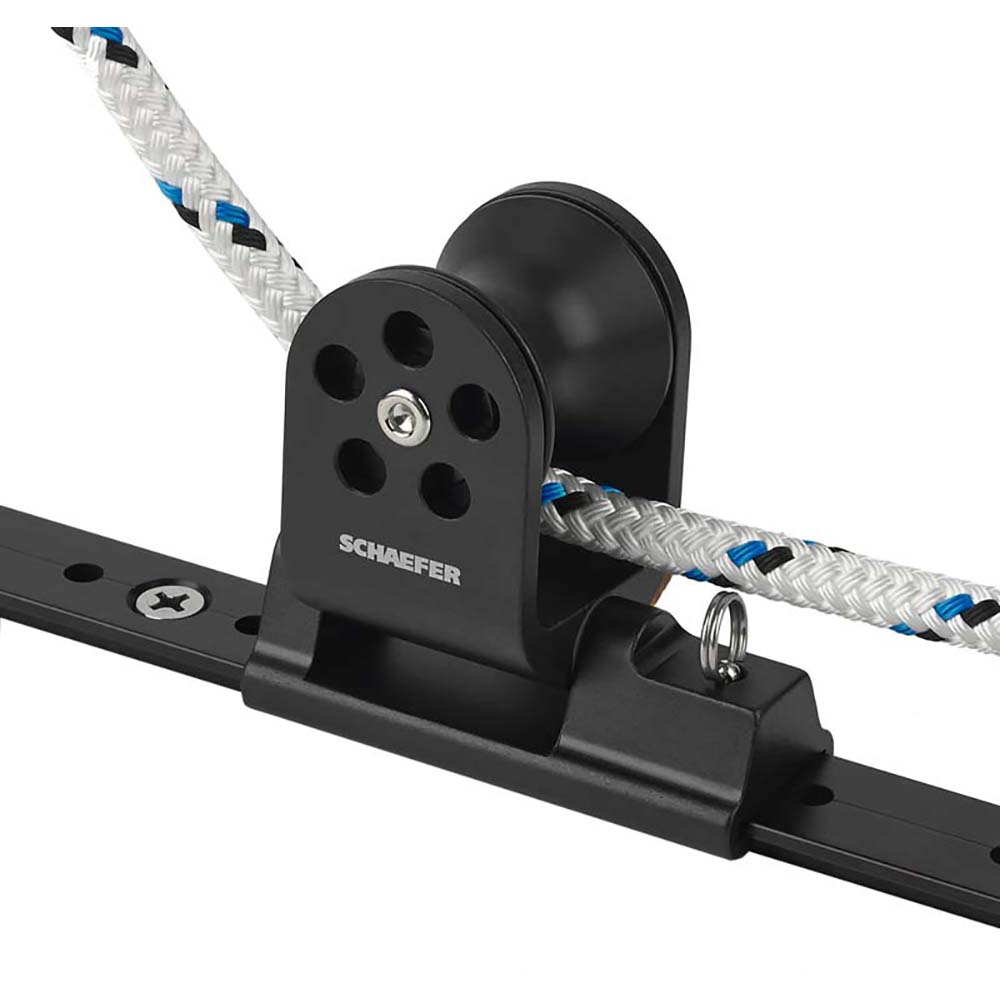

Twin Sheet Lead 25x3MM – Black

32-77 Twin Sheet Lead block. The anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on Nomex™/Teflon™ bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.

Features:

  • Track Size 1″ x 1/8″ (25 mm x 3 mm)
  • Boat Size Up To LOA 29′
  • Disp. 5000 lbs.
  • Sail Area 315 sq. ft (8m, 2270 kg, 29 m2)
  • Sheave Dia. 1-1/2″ (38 mm)
  • Max Line (2) 1/2″ (13 mm)
  • L 3-1/2″ (89 mm)
  • W 1-11/32″ (34 mm)
  • H 3-9/32″ (83 mm)
  • Bearing Height 1-29/32″ (49 mm)
  • SWL 2500 lbs. (1135 kg)
  • Weight 10 oz. (284 g)

Additional information

Weight 0.7 lbs
Dimensions 4 × 4 × 2 in
Model Number 32-77
UPC 740507003707
