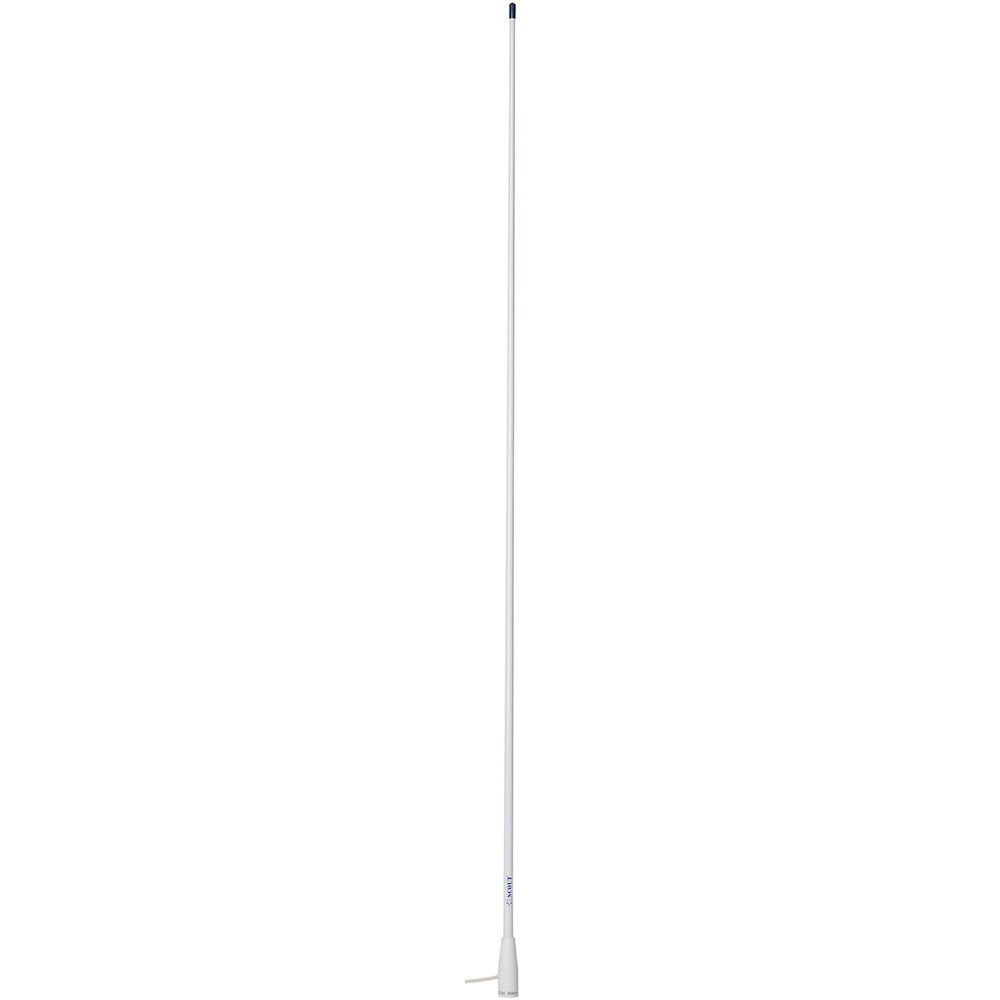

5' White VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22
There’s no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.
It’s built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with a high gloss anti-UV filter to prevent color deterioration.
The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
Features:
- Foam injected – 100% WATERPROOF – IP69
- Anti–UV high gloss finish
- 5 m coaxial cable RG 58 CU MIL
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- Electrical length: 1/2 λ
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: 3 dB
- Max power input: 50 W
- DC ground: Yes
- Whip material: Fiberglass
- Coaxial cable: 5 m (16,4′) RG 58 CU MIL
- Mounting: 1″ x 14 thread
- Length: 1,5 m (5′)
- Weight: 0,39 kilo
