Sea-Dog Buss Bar w/Cover – 6 Terminals

100307
Sea-Dog

$40.95 $22.75

20 in stock
Qty :
, ,

Description

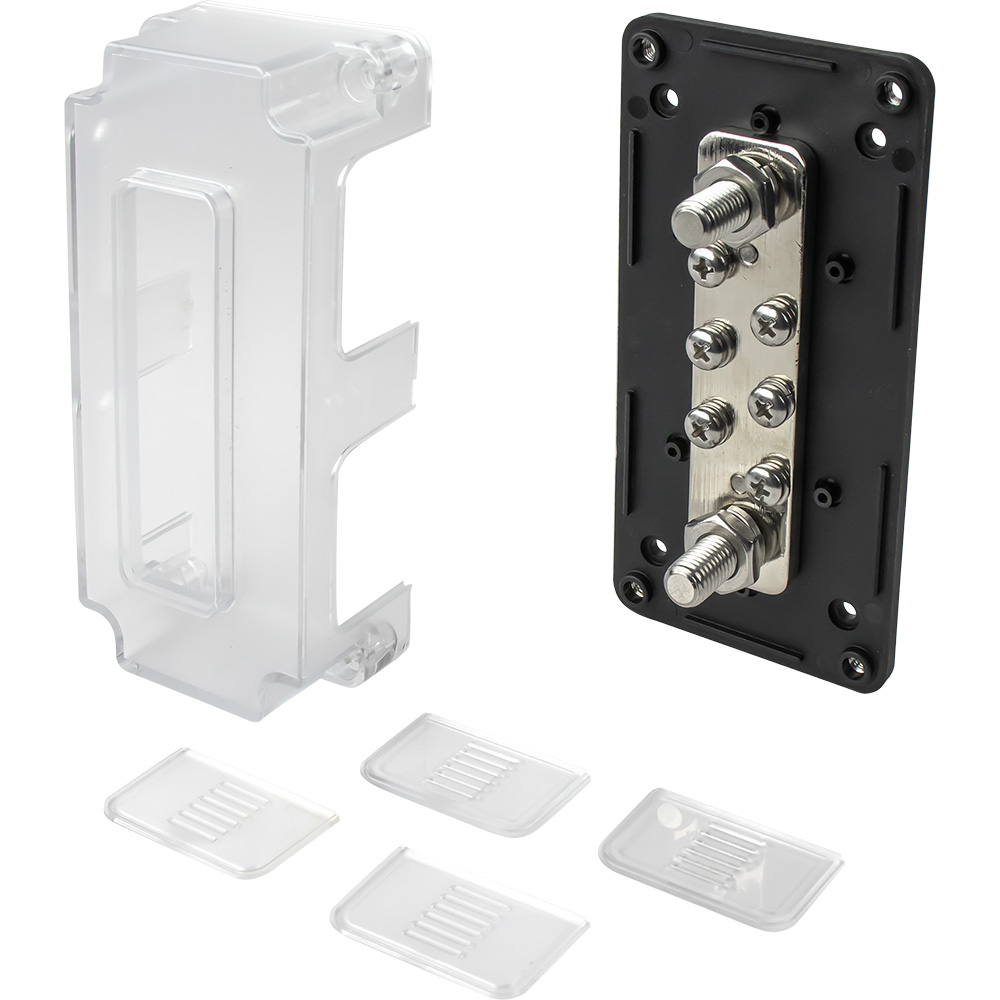

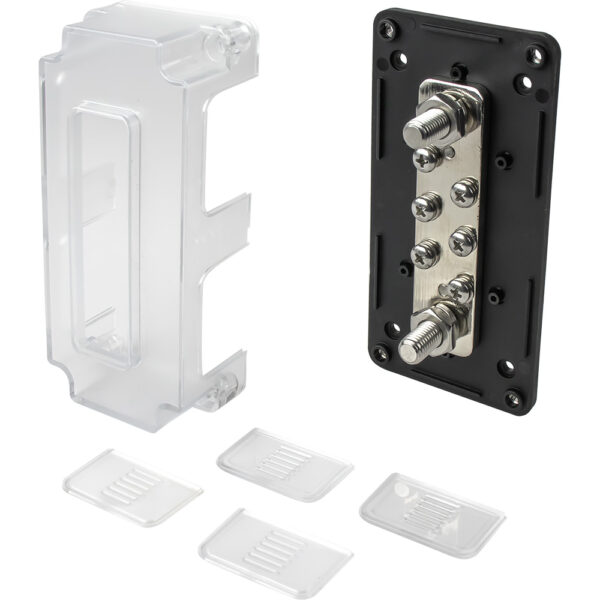

Buss Bar with Cover – 6 Terminals

This bus bar is designed for positive or negative DC distribution or collection of AC neutral or safety ground circuits. Constructed of corrosion-resistant tin-plated Copper and ABS with a polycarbonate cover.

Features:

  • Includes two 5/16″-18 stainless steel stud terminals and six #10-32 stainless steel screw terminals
  • Installs with four #8 FH fasteners (included)
  • 48VDC, 300A; 300VAC, 300A maximum
  • CE and RoHS compliant

Specifications:

  • Terminals: 6
  • Length (inch): 5-1/2″
  • Width (inch): 2-3/4″
  • Depth (inch): 1-11/16″
  • Max. Amps: 300
  • Fastener: #8 FH
  • Weight: 0.68 lb.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional information

Weight 0.8 lbs
Dimensions 6 × 4 × 3 in
Model Number 426692-3
UPC 035514433174
