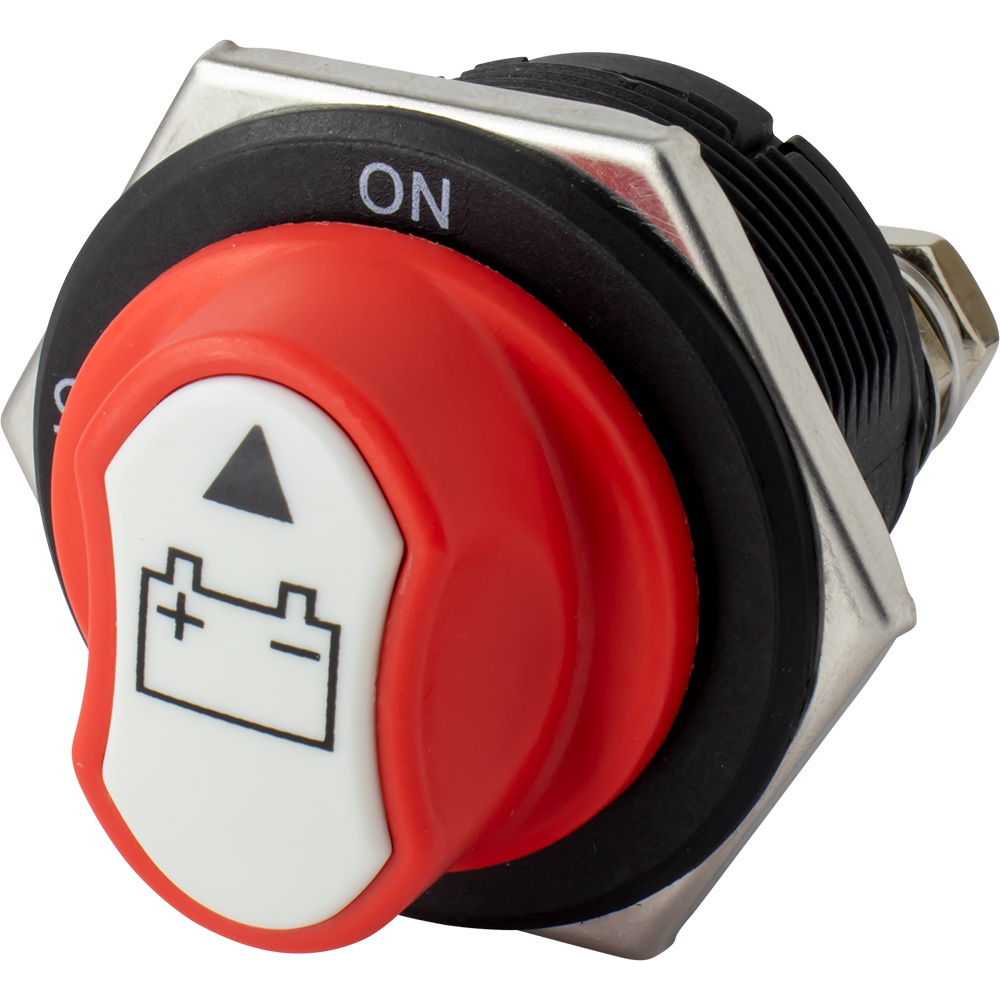

Mini Battery Switch Key with Removable Knob – 32V & 300A
These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps. Installation is as easy as drilling a 2-1/16″ hole for the 422730-1, inserting the socket body, tightening the locking nut, and connecting the wires.
Features:
- 3 Switch positions: On, off, and out
- Constructed of machined brass and injection molded nylon
Specifications:
- Switch Face Width: (inch) 2-1/16″
- Volts: 32
- Amps: 300
- Stud Diameter: (inch) 5/16″
Action = NONE | AFD = NONE | Color = NONE | Continuous Amperage = 300 | Lockable = NONE | Positions = 3 | Throw/Pole = NONE
