Description

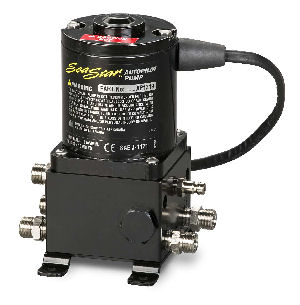

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
-
Long life DC Motor (i.e. long life brushes)
-
Compact design
-
Simplified installation
-
Low power consumption
-
ABYC, CE?s and J1171 compliant
-
Superior corrosion resistance
-
Quiet operation
-
All mounting bracket displacement included
|
Voltage |
|
12 volt |
|
|
|
|
|
Fittings
|
|
Compatible w/ Standard Seastar Hose – Thread 9/16" X 24 UNEF |
|
|
|
|
|
Wire Details |
|
|
|
Length |
|
24" |
|
Gauge |
|
12 awg |
|
Connector |
|
None – Bare Leads |
|
|
|
|
|
Oil Compatibility |
|
Seastar Steering Fluid (MIL 5606) |
|
|
|
|
|
Weight |
|
4.9 lbs (2.2 kg) |
|
|
|
|
|
Pump Sizes |
|
Type 1: 60 in3/min (no-load) |
|
|
Type 2: 100 in3/min (no-load) |
|
|
|
|
|
|
Maximum Pressure |
|
1000 psi |
|
|
|
|
|
Typical Current Draw |
|
12V Type 1: 4 ? 8 amps |
|
(Depending on Application) |
|
12V Type 2: 5 ? 11 amps |
|
|
|
|
|
|
|
|
|
|
|
|
|
Ram Capacity |
|
|
|
Type 1 |
|
4.9 in3 – 14 in3 |
|
Type 2 |
|
14 in3 – 21 in3 |
