Description

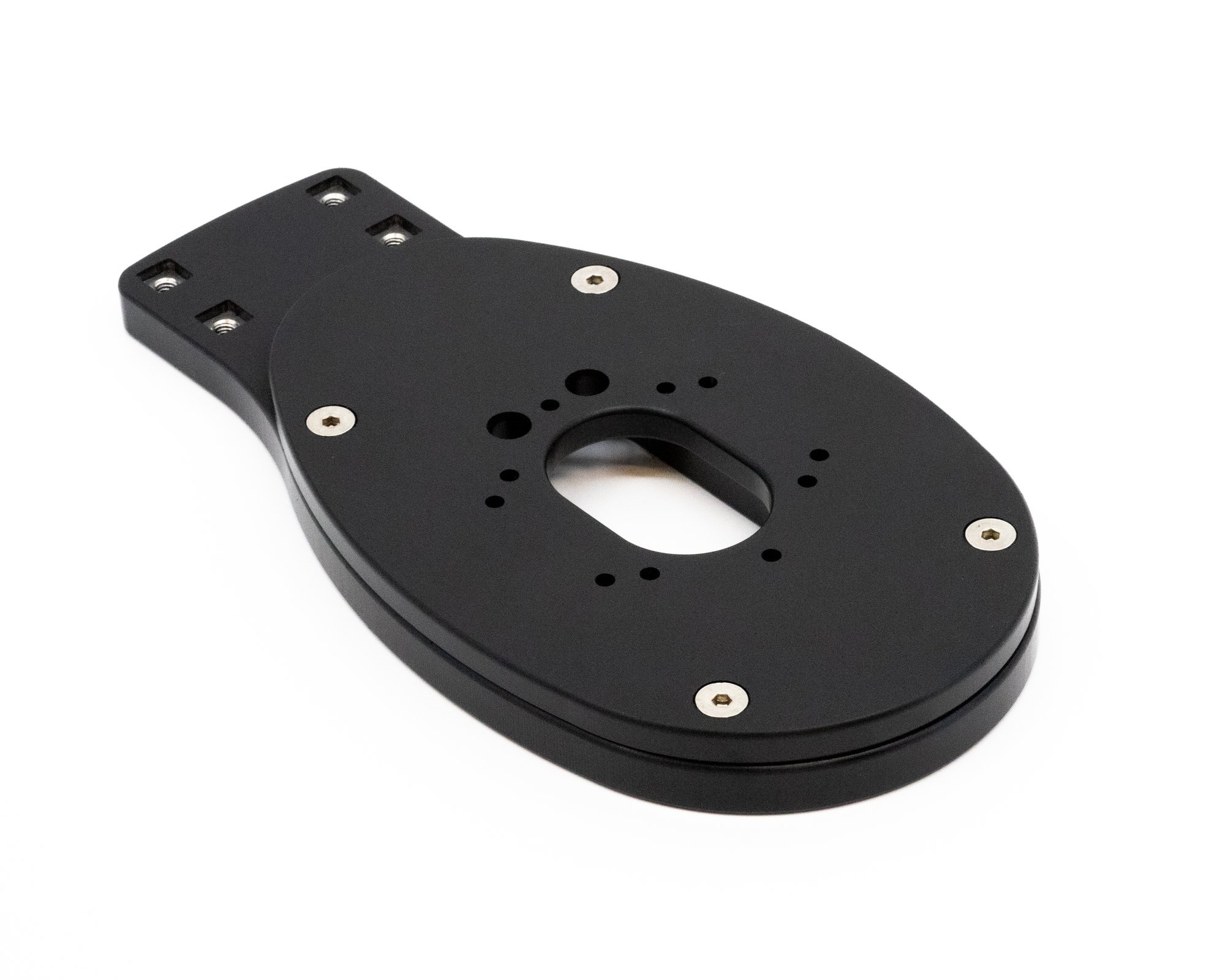

Seaview’s innovative new modular electronic mounts feature a unique universal plate design that provide a cleaner look and greater installation flexibility. The end result is a nice clean look with no visible holes. This modular Top Plate fits FLIR FLIR M324,625,612L,617CS,M618CS, MD324, MD625 Raymarine T-Series.
| Features: |
- No more unwanted visible holes in the mounting plate!
- Easy 3 step modular system.
- Aft, forward, vertical and dual mount designs..
- Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!
|
| Closed Dome Radar, Small Satdomes (16 in or smaller) & Cameras |
| PMF-57-M1 |
5 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-107-M1 |
10 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-57-M1 |
5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-107-M1 |
10 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-167-M1 |
16 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-247-M1 |
24 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-367-M1 |
36 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| AM5-M1 |
5 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM12-M1 |
12 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| AM18-M1 |
18 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required |
| Large Satdomes (18 in – 24 in) |
| PMA-57-M1 |
5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-1210-M2 |
12 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-1810-M2 |
18 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-DM1-M2 |
12.5 in Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM2-M2 |
22.5 in Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
|
|
| Step 2 |
Choose Top Plate |
| ADA-R1 |
Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) |
| Satdome |
| ADA-S1 |
1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14 |
| ADA-S2 |
Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 |
| ADA-S3 |
2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD |
| ADA-S4 |
Modular plate for ALL FB150 & FB250 domes |
| ADA-F1 |
Modular plate for FLIR M or Ray T series thermal cameras |
Step 3
| Choose Optional Accessories |
| LTB-R |
1 1/4 in Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| Must pick a LTB TOP below |
| (LTB TOP) Standard 1-14 thread for GPS or similar |
| LTB-U1A |
(LTB TOP) Perko 1197 light with 7 feet of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length. |
| LTBA-7800 |
(LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included) |
| PM-114LT-DLX |
Floodlight kit for 1 1/4 in. dia. LTB (includes 4 in X 6 in 55-watt 14V quartz halogen floodlight & hardware) |
| PM-U2A |
Light bar adapter to mount a light and 2 GPS (electronics not included) |
| PM-W4-7 |
4 degree wedge/ for 7×7 radar mount base plate |
| Hinge Adapters for base plate |
| PM-H8 |
Hinge adapter/ for 8×8 base plate/ (fits most 24 -36 in. tall Radar Mounts) |
