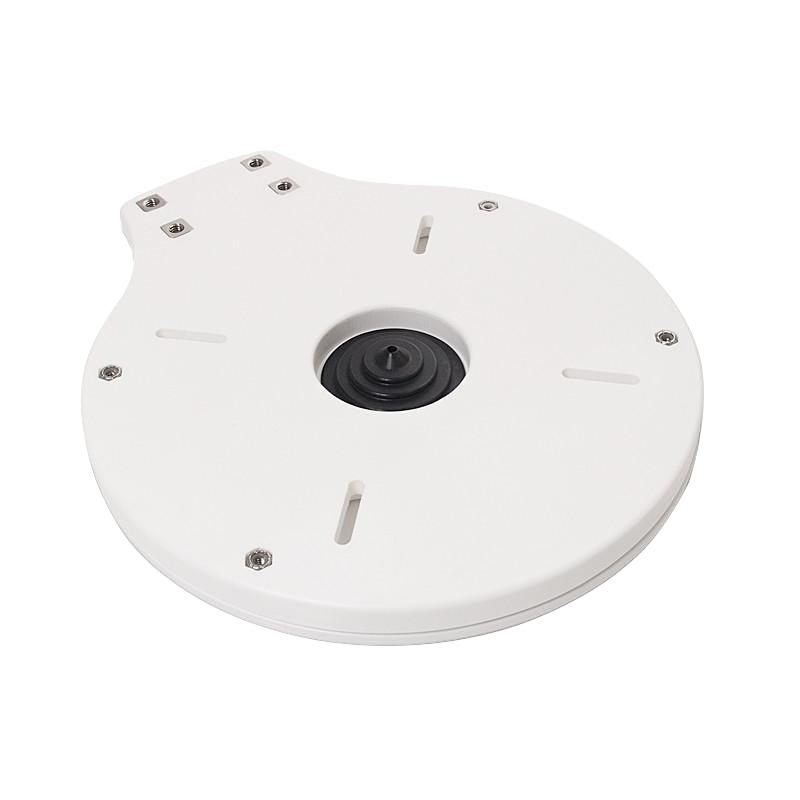

Seaview ADAS3 Plate For Small Satelitte Domes

SVWADAS3
Seaview

$245.00 $196.00

(MRP Pricing)

3 in stock
Qty :

Description

Seaview’s innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is incased inside the UV stable white ABS plastic. There are dimple holes on the top surface of the top plate match up with a drill template allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes.

This modular Top Plate fits:

  • Glomex 20"-27" Satdomes (for modular parts ending in M2)
  • Intellian i1 (for modular parts ending in M2) / i2 (for modular parts ending in M2)
  • KVH M1 (for modular parts ending in M2)
  • Thrane & Thrane Sailor FB500 (for modular parts ending in M2) / Fleet 55+ (for modular parts ending in M2)
  • Raymarine 33STV (for modular parts ending in M2)
  • VDO Ocean Line 132 (for modular parts ending in M2).
    • Features:
    • No more unwanted visible holes in the mounting plate!
    • Easy 3 step modular system.
    • Aft, forward, vertical and dual mount designs..
    • Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!



    Step 1 Select Mount Type this will be the base for the system
    Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras
    PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMF-107-M1 10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-107-M1 10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-167-M1 16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-247-M1 24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-367-M1 36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    AM5-M1 5"     Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
    AM12-M1 12"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
    AM18-M1 18"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required
    Open Array Radar
    PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required
    Large Satdomes (18" – 24")
    PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required
    PMA-1210-M2 12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
    PMA-1810-M2 18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required
    Dual Mount & Arches
    PMA-DM1-M2 12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required
    PMA-DM124-M2 (***) 32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required
    PMA-DM2-M2 22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required
    PMA-DM3-M2 28"    Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required
    Step 2 Choose Top Plate
    Radar (closed dome & open array 4′-6′)
    ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide)
    ADA-R2 Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes
    Satdome
    ADA-S1 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
    ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24
    ADA-S3 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
    ADA-S4 Modular plate for ALL FB150 & FB250 domes
    ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras
    Step 3 Choose Optional Accessories
    Light / GPS Bars (Light bar top accessory required, see below)
    LTB-R 1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
    LTB-OA 1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below
    LTB-OA6 1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below
    LTB-S 1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below
    LTB-S24 1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below
    LTB-SF (***) 1 1/4" Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below
    Light Bar Tops (LTB TOP required with light bars above)
    LTB-U (LTB TOP) Standard 1-14 thread for GPS or similar
    LTB-U1A (LTB TOP) Universal Light bar top for mounting your own light and or GPS
    LTBP-1197 (LTB TOP) Perko 1197 light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
    LTBA-7800 (LTB TOP) Attwood LED 7800 ser. light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft).
    LTB-BOX (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
    Light Bar Accessories
    PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB  (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware)
    PM-114LT-LED (***) Floodlight kit for 1 1/4 in. dia. LTB  (includes LED floodlight & hardware)
    PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included)
    Base Wedge
    PM-W4-7 4 degree wedge/ for 7×7 radar mount base plate
    PM-W4-8 4 degree wedge/ for 8×8 radar mount base plate
    Hinge Adapters for base plate
    PM-H7 Hinge adapter/ for 7×7 base plate/  (fits most 5 -16 in. tall Radar Mounts)
    PM-H8 Hinge adapter/ for 8×8 base plate/  (fits most 24 -36 in. tall Radar Mounts)

    Additional information

    Weight 8.00 lbs
    Model Number ADAS3
    UPC 839662009157
