Description

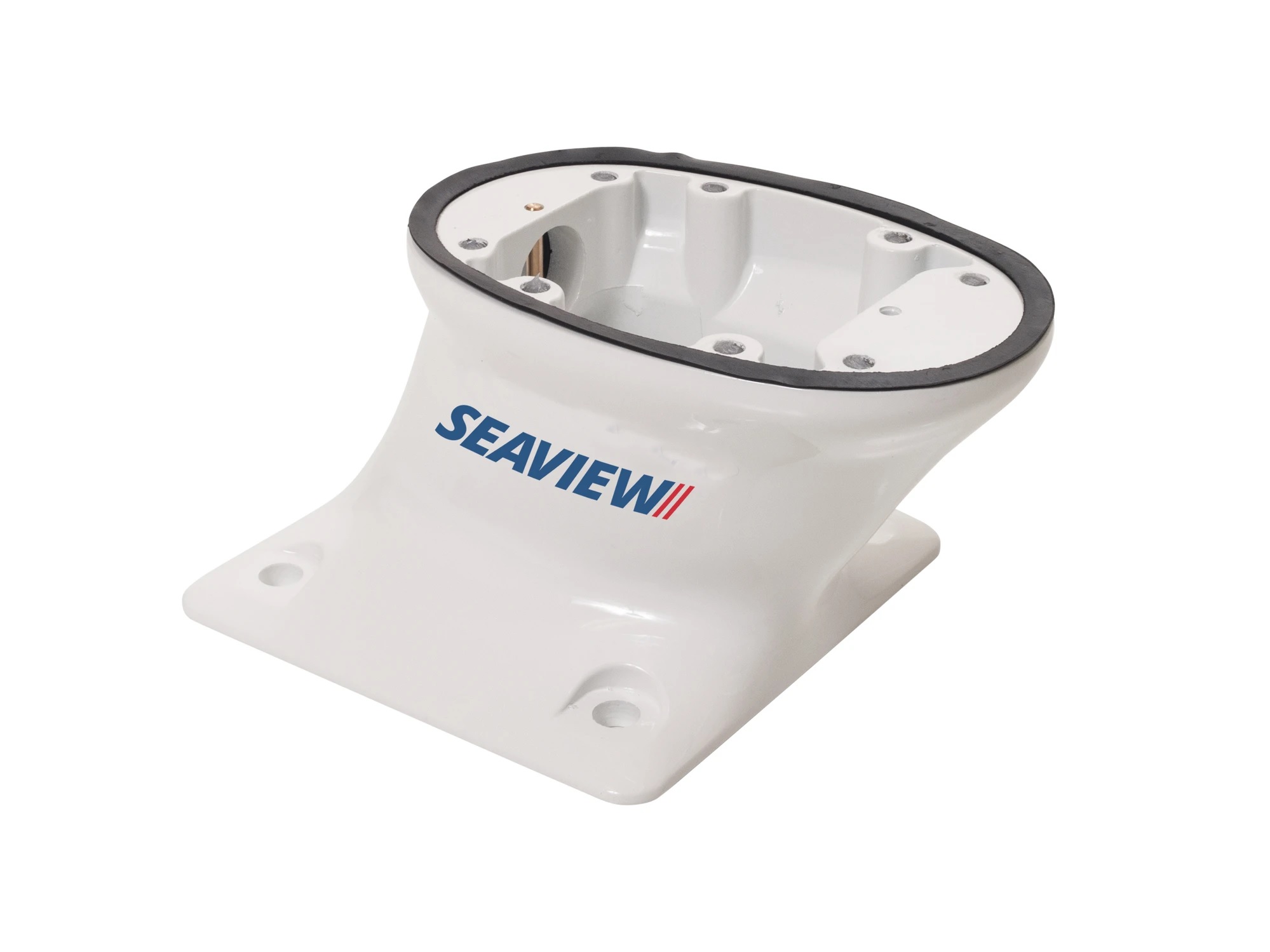

The 5″ tall Seaview forward leaning mount is for Open Array Radars, Closed Dome Radars and small Satdomes (16″ diameter or smaller). The oval hollow mast section allows for easy cable management. The small 7″x7″ foot print design is a great solution for limited space. This modular mount is light bar compatible. Numerous accessories are also available for this mount such as wedges, hinges, spreaders, lightbars and floodlights. *Please note that a Top Plate is required (sold separately)*
| Features: |
- No more unwanted visible holes in the mounting plate!
- Easy 3 step modular system.
- Aft, forward, vertical and dual mount designs..
- Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!
|
| Step 1 |
Select Mount Type this will be the base for the system |
| Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras |
| PMF-57-M1 |
5" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-107-M1 |
10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-57-M1 |
5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-107-M1 |
10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-167-M1 |
16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-247-M1 |
24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-367-M1 |
36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| AM5-M1 |
5" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required |
| AM12-M1 |
12" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required |
| AM18-M1 |
18" Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required |
| Open Array Radar |
| PMA-57-M1 |
5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-57-M1 |
5" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| Large Satdomes (18" – 24") |
| PMA-57-M1 |
5" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-1210-M2 |
12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-1810-M2 |
18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| Dual Mount & Arches |
| PMA-DM1-M2 |
12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM124-M2 (***) |
32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM2-M2 |
22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| PMA-DM3-M2 |
28" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| Step 2 |
Choose Top Plate |
| Radar (closed dome & open array 4′-6′) |
| ADA-R1 |
Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) |
| ADA-R2 |
Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes |
| Satdome |
| ADA-S1 |
1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14 |
| ADA-S2 |
Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 |
| ADA-S3 |
2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD |
| ADA-S4 |
Modular plate for ALL FB150 & FB250 domes |
| ADA-F1 |
Modular plate for FLIR M or Ray T series thermal cameras |
| Step 3 |
Choose Optional Accessories |
| Light / GPS Bars |
(Light bar top accessory required, see below) |
| LTB-R |
1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-OA |
1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below |
| LTB-OA6 |
1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below |
| LTB-S |
1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-S24 |
1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-SF (***) |
1 1/4" Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below |
| Light Bar Tops |
(LTB TOP required with light bars above) |
| LTB-U |
(LTB TOP) Standard 1-14 thread for GPS or similar |
| LTB-U1A |
(LTB TOP) Universal Light bar top for mounting your own light and or GPS |
| LTBP-1197 |
(LTB TOP) Perko 1197 light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length. |
| LTBA-7800 |
(LTB TOP) Attwood LED 7800 ser. light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft). |
| LTB-BOX |
(LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included) |
| Light Bar Accessories |
|
| PM-114LT-DLX |
Floodlight kit for 1 1/4 in. dia. LTB (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware) |
| PM-114LT-LED (***) |
Floodlight kit for 1 1/4 in. dia. LTB (includes LED floodlight & hardware) |
| PM-U2A |
Light bar adapter to mount a light and 2 GPS (electronics not included) |
| Base Wedge |
|
| PM-W4-7 |
4 degree wedge/ for 7×7 radar mount base plate |
| PM-W4-8 |
4 degree wedge/ for 8×8 radar mount base plate |
| Hinge Adapters for base plate |
|
| PM-H7 |
Hinge adapter/ for 7×7 base plate/ (fits most 5 -16 in. tall Radar Mounts) |
| PM-H8 |
Hinge adapter/ for 8×8 base plate/ (fits most 24 -36 in. tall Radar Mounts) |
