Description

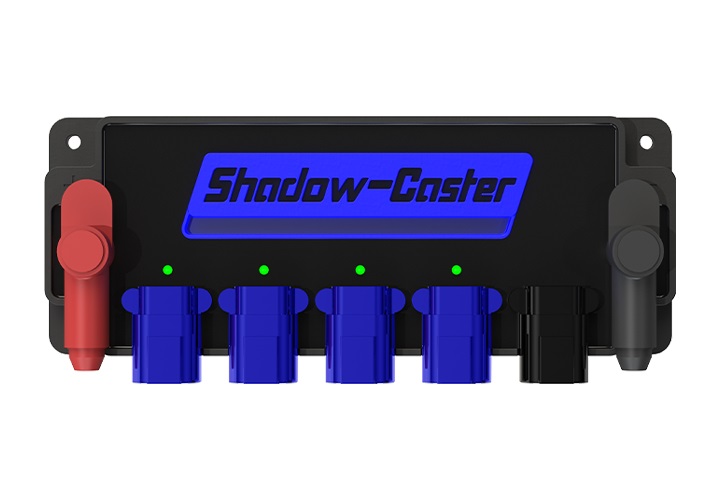

Shadow Caster SCM-PD4CH 4 Channel Power Relay with Shadow-Net Control
Model: SCM-PD4CH
- Compact remote power control box
- Green and red LED indicates the status of each output channel
- Individual digital overcurrent protection for each channel
- Compatible with Shadow-Caster™ single and multi-color lights
- Recommended when installing two or more underwater lights
- Can be used with a helm mounted switch or with no switch when using a compatible Shadow-NET™ controller
- Blue LED Backlight indicates power state
- Compatible with 12 or 24V systems
- Up to 10 amps per channel
- 5/16" power lugs
- IP67 washdown rated enclosure
The SCM-PD4CH is a 4-position power distribution module that provides a convenient way to connect and power to four Shadow-Caster™ underwater lights. Digital overcurrent protection for each output insures safe operation of multiple lights and provides an easy way to manage the current needs of multiple light installations. The SCM-PD4CH is housed in a compact IP67 enclosure box that is ideal for mounting in bilge and wet locations.
What’s in the Box:
- 4 channel power control box
- Mounting hardware 4 #8 PH SS x.5"
- Prewired mating connectors
- Standard 3 year warranty
