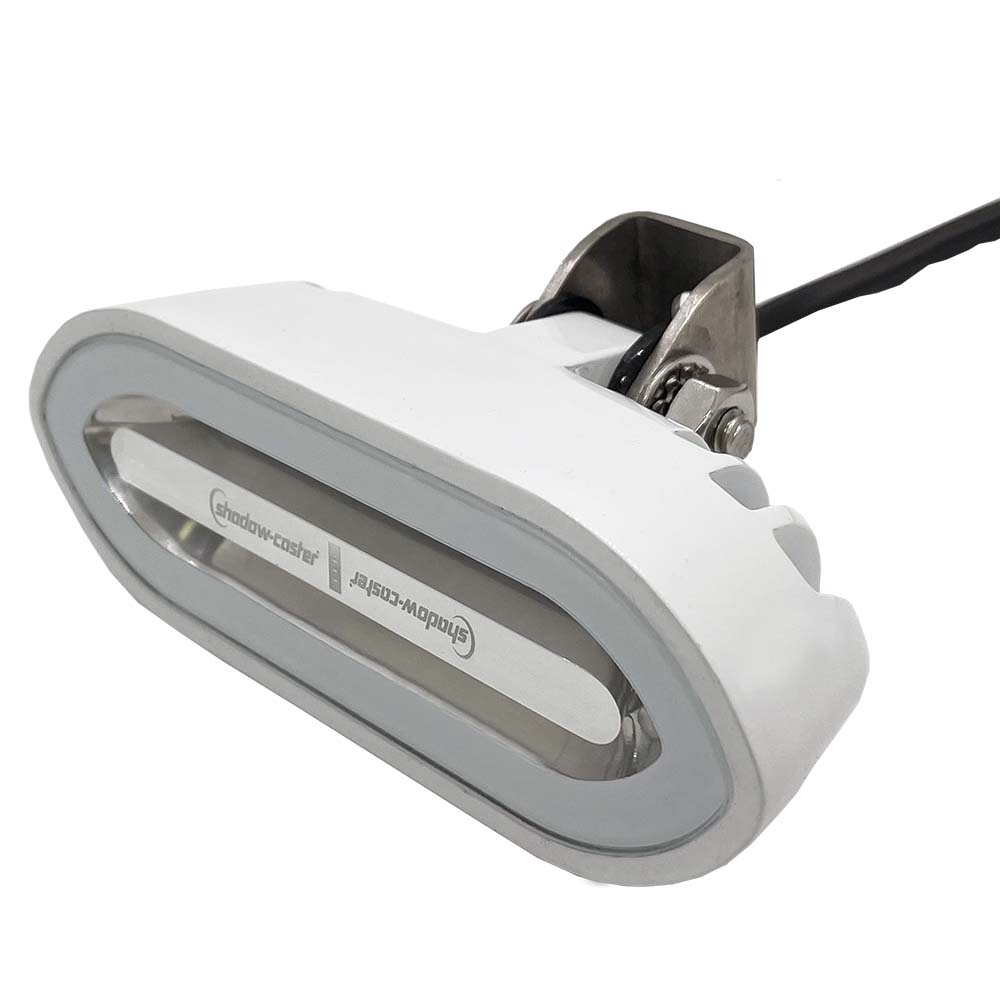

SCM-SL Series Bracket Mount Spreader Light – White Housing – White

The Shadow-Caster Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations. The Shadow-Caster Spreader Light has a unique reflector design that spreads the light beams out to reduce glare. The Spreader Light comes in a black or white finish. It is available in 3 color output options: single color white, 2 colors (white and blue) as well as a full-color version. The brightness and color can be controlled with a standard switch.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds.
• Power toggle feature to set brightness and change color
• True white LED for best color performance
• High-efficiency switch mode power supply
• Waterproof low-profile aluminum housing
• White or black finish
• Unique reflector design to reduce glare

Specifications:

• 1500 lumen output
• 60-degree beam angle
• 16-watt power draw
• 10-30 volts Input
• 1.4A at 12 volts, 0.7A at 24 volts
• 6200 Kelvin cool white color temperature
• 5” (127mm) overall width x 1.5”(38mm) height x 1.3” (33mm) mounting depth.
• IP67 waterproof design
• Durable glass lens
• The full-color version includes Shadow-NET® interface for controlling color

Includes:

• Spreader light
• Mounting screws and (2 screws) #4 X 0.5” SS3160H screws with flush mount version
• Quick start guide
• Standard 2 year warranty
