Description

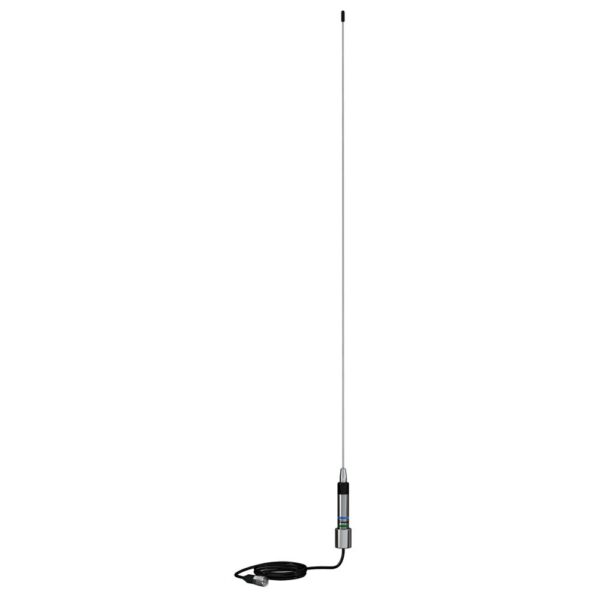

Shakespeare Style 5250 Skinny Mini
3 ft. (0.91 M) VHF Marine Band 3dB
End-fed -wave stainless steel whip
This compact, lightweight antenna is ideal for vessels where space is limited – bass boats and center console fishing vessels, for example. Its chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters.
Stainless steel whip (36")
Sealed, tin-plated copper wire coil
Requires mount with center hole for passage of the supplied 15′ RG-58 cable.
Cable and PL-259 connector included
Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately)
PL-259 connector included
One section
Suggested mount(s): 4187 4188-S
| Shakespeare 5250 Skinny Mini Specifications | |
| Band: | VHF Marine Band |
| Antenna Gain: | 3dB |
| Max. Input Power: | 50 watts |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Bandwidth: | 7 MHz within 2.0:1 VSWR |
| Coax Supplied: | 15 ft of RG-58 |
| Connector Supplied: | PL-259 |
| Polarity: | Vertical |
| Impedance: | 50 Ohms |
| DC Ground: | No DC Ground – The antenna will read open on continuity test. |
| Shakespeare Limited Warranty: |
2 years |
