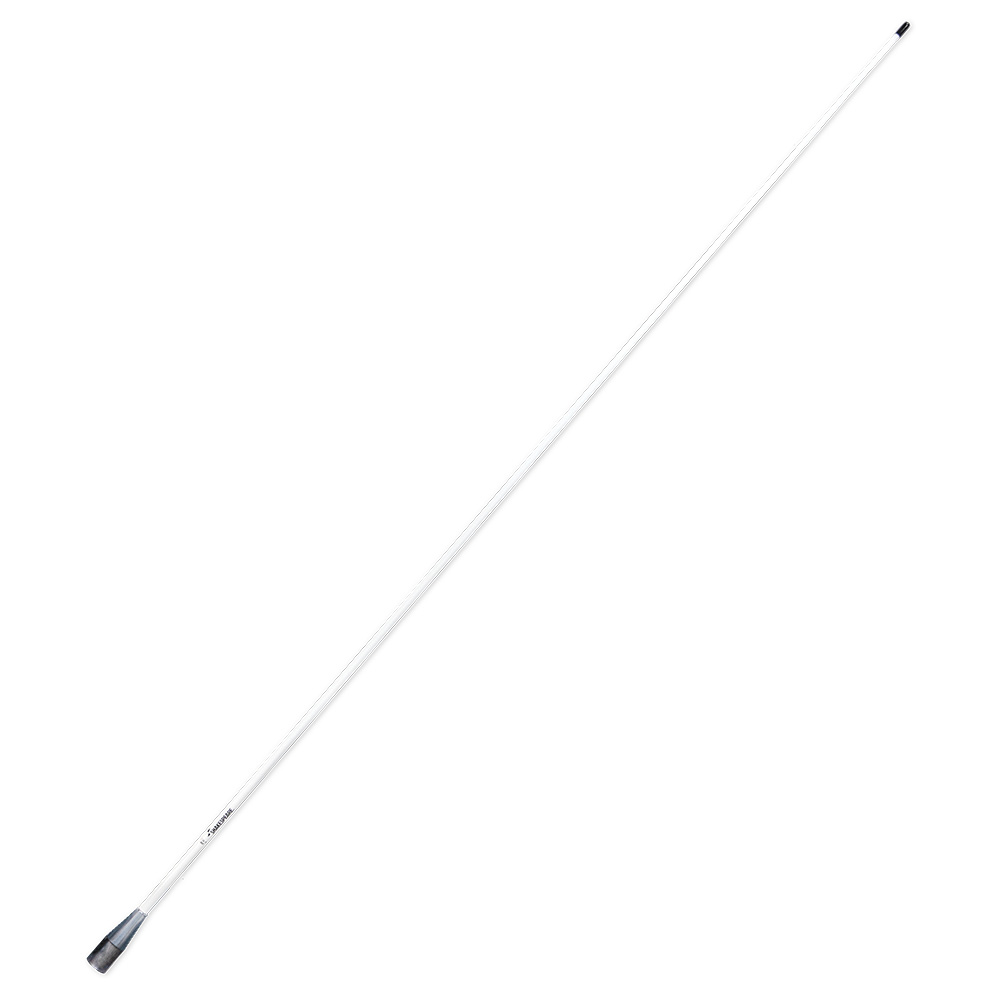

Shakespeare 396-1 5′ VHF Antenna

10597
Shakespeare

$179.99 $144.12

8 in stock
Qty :
,

Description

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1-14 thread
  • Includes 15′ RG-58 cable and a PL-259 connector
  • Suggested mount: Style 4187 Ratchet Mount
  • One section

Technical Specifications:

Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5 MHz
SWR: 1.5:1 at 156.8 MHz
Impedance (Ohms): 50
Gain: 3 dB
Max Input (Watts): 50
DC Ground: NO
Termination: 15′ RG-58 cable
Height (feet): 5
Polarization: Vertical
Radiation pattern: Omni-directional

Quick Guide Litreture

Brochure Litreture

Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Chrome Plated | Length (Inches) = 60"

Additional information

Weight 2.9 lbs
Dimensions 63 × 3 × 3 in
Model Number 396-1
UPC 719441100018
