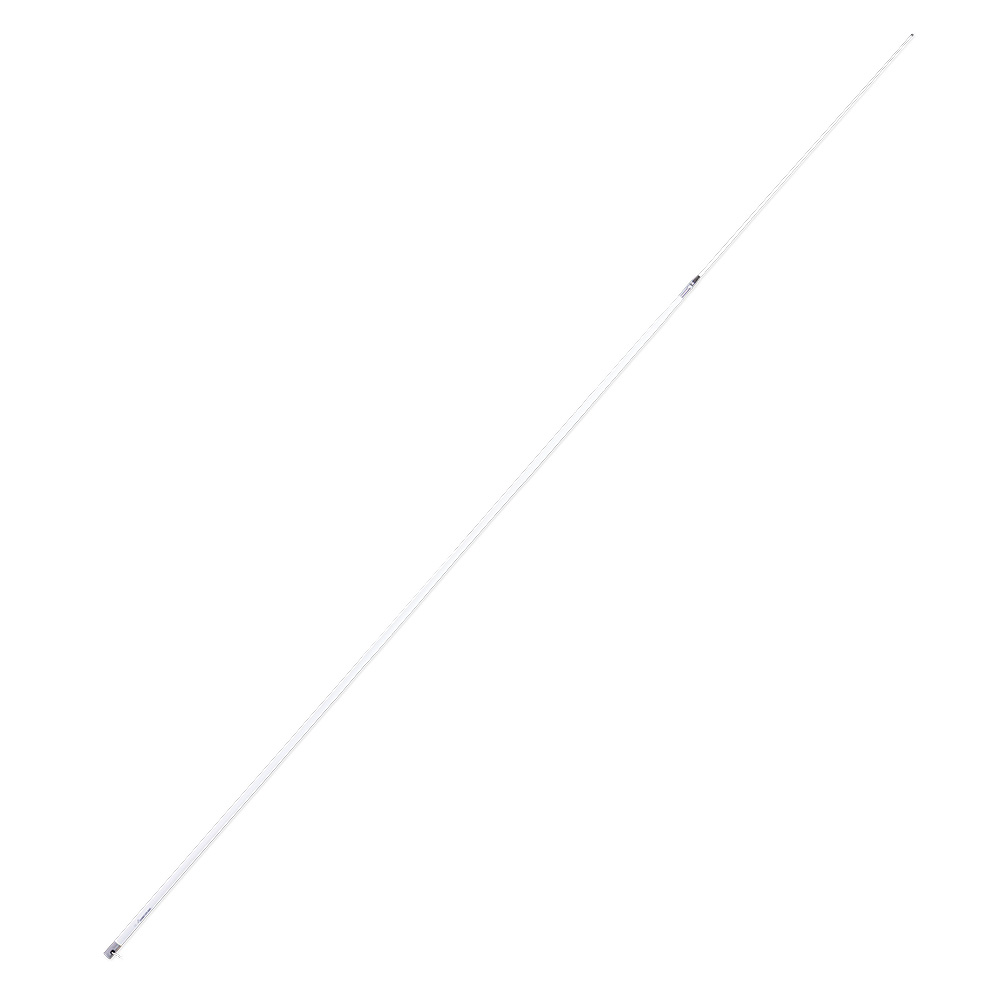

Shakespeare 4018 19′ VHF Antenna

10601
Shakespeare

$649.99 $409.07

0 in stock
Qty :
,

Description

Style 4018 VHF 9dB

Phased 1/2-wave elements in a collinear array with a coaxial choking sleeve to suppress cable radiation

The top choice for charter boat captains and experienced sport fishing enthusiasts. This long-distance VHF antenna is rigid enough to stay erect in rough seas, yet exceptionally lightweight.

  • Brass and copper elements
  • Chrome-plated brass ferrules
  • Includes 20′ RG-58 cable and a PL-259 connector
  • Suggested mount: Style 409-R or 410-R Mounting Kit for deck or side mounting
  • Two sections: base 162″, tip 66″

Technical Specifications:

Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR) 3 MHz
SWR: 1.5:1 at 156.8 MHz
Impedance: (ohms): 50
Gain: 9 dB
Max Input (Watts): 25
DC Ground: NO
Termination: 20′ RG-58
Height (feet): 19
Polarization: Vertical
Radiation pattern: Omni-directional

Quick Guide Litreture

Brochure Litreture

Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Chrome Plated | Length (Inches) = 228"

Additional information

Weight 25 lbs
Dimensions 174 × 2 × 2 in
Model Number 4018
UPC 719441100100
