Description

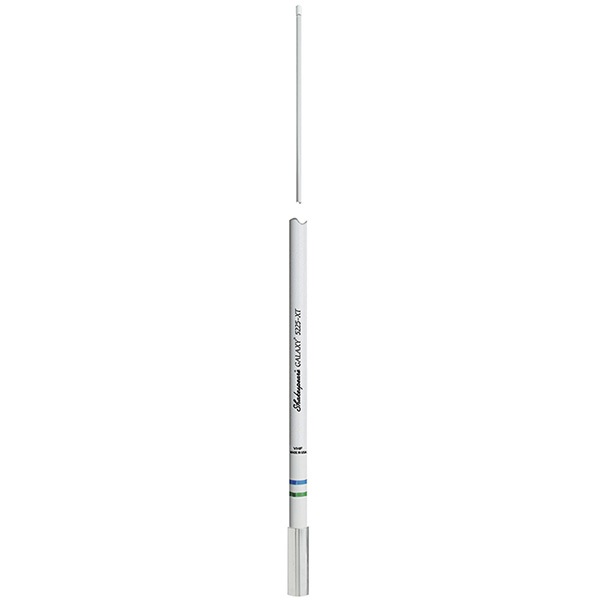

Shakespeare 5225XT-AIS 8′ Galaxy® AIS antenna
6dB, with stainless steel ferrule
Model: 5225XT-AIS
UPC: 719441100940
- Brass and copper elements
- High-gloss, non-yellowing polyurethane finish
- Stainless steel ferrule with 1″ — 14 thread
- Includes 20’ RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: 3187, 4187, 4187HD or 5187
Cruise with confidence and communicate reliably over the VHF/AIS band using the Galaxy® 5225-XT-AIS. Specifically designed to meet the broader bandwidth requirements of all popular AIS transceivers, this antenna features a commercial-grade fiberglass construction to ensure performance and durability. These benefits combined with the great look of our Galaxy® high-gloss finish signifies a standard of quality to be admired.
Specifications
| Band | VHF/AIS Marine |
| Gain | 6dB |
| Maximum input power | 100 watts |
| SWR | Nominally 1.5:1 at 158.6 MHz |
| Bandwidth | 3 MHz within 2.0:1 VSWR |
| Ferrule | Stainless steel |
| Coax supplied | 20 ft of RG-8/X |
| Connector supplied | PL-259, not installed |
| Polarity | Vertical |
| Impedance | 50 Ohms |
| DC Ground | DC Grounded — The antenna will read shorted on continuity test. |
