Description

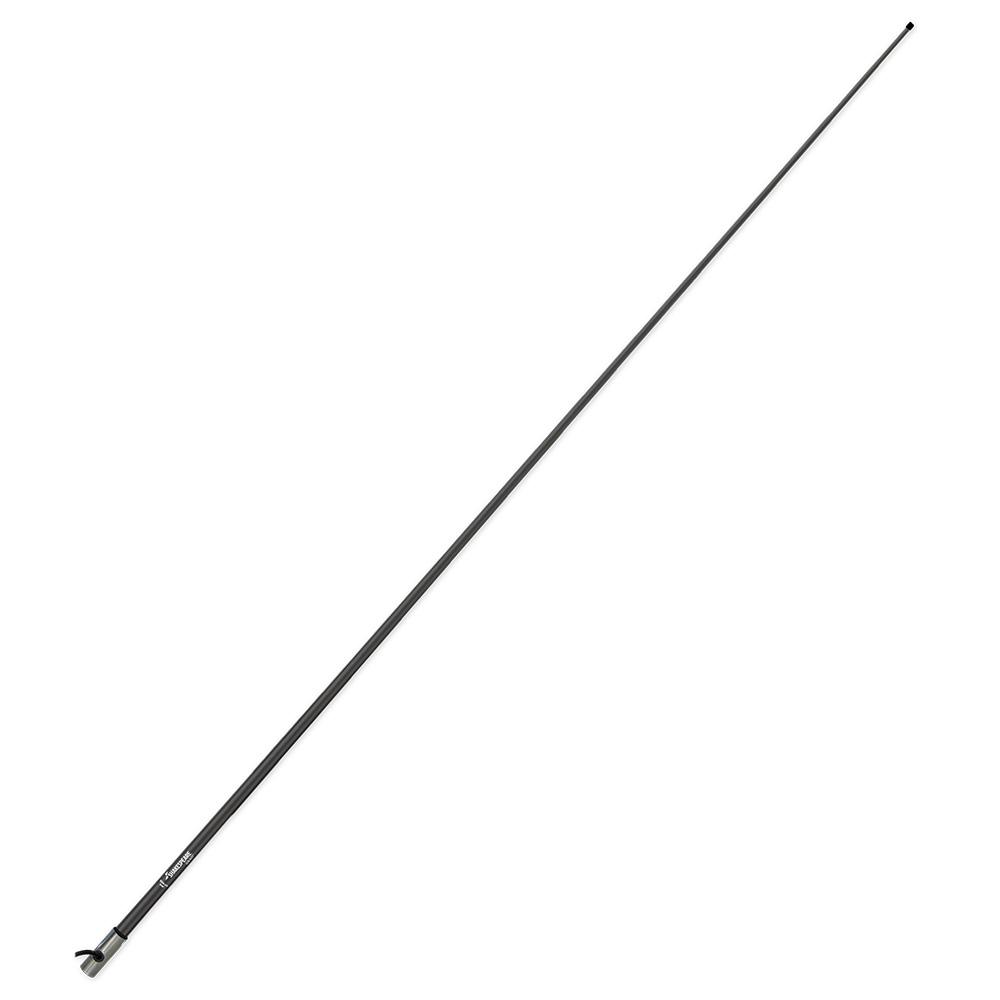

Shakespeare Galaxy Style 5226-XT – Reduced Length
8′ VHF 6dB Gain
Collinear-phased 5/8 wave elements
EXTRA TOUGH!
This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It’s Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.
- Brass and copper elements for maximum range and efficiency
- Stainless steel ferrule with standard 1"-14 thread
- 20′ RG-8/X low-loss cable plus a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 5 years
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 3 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Impedance: | 50 ohms |
| Gain: | 6 dB |
| Max Input (Watts): | 100 watts |
| DC Ground: | YES |
| Height (feet): | 8 |
| Polarization: | Vertical |
Antenna Band = VHF | Color = Black | Construction = Fiberglass | Ferrule Type = Stainless Steel | Length (Inches) = 96"
