Description

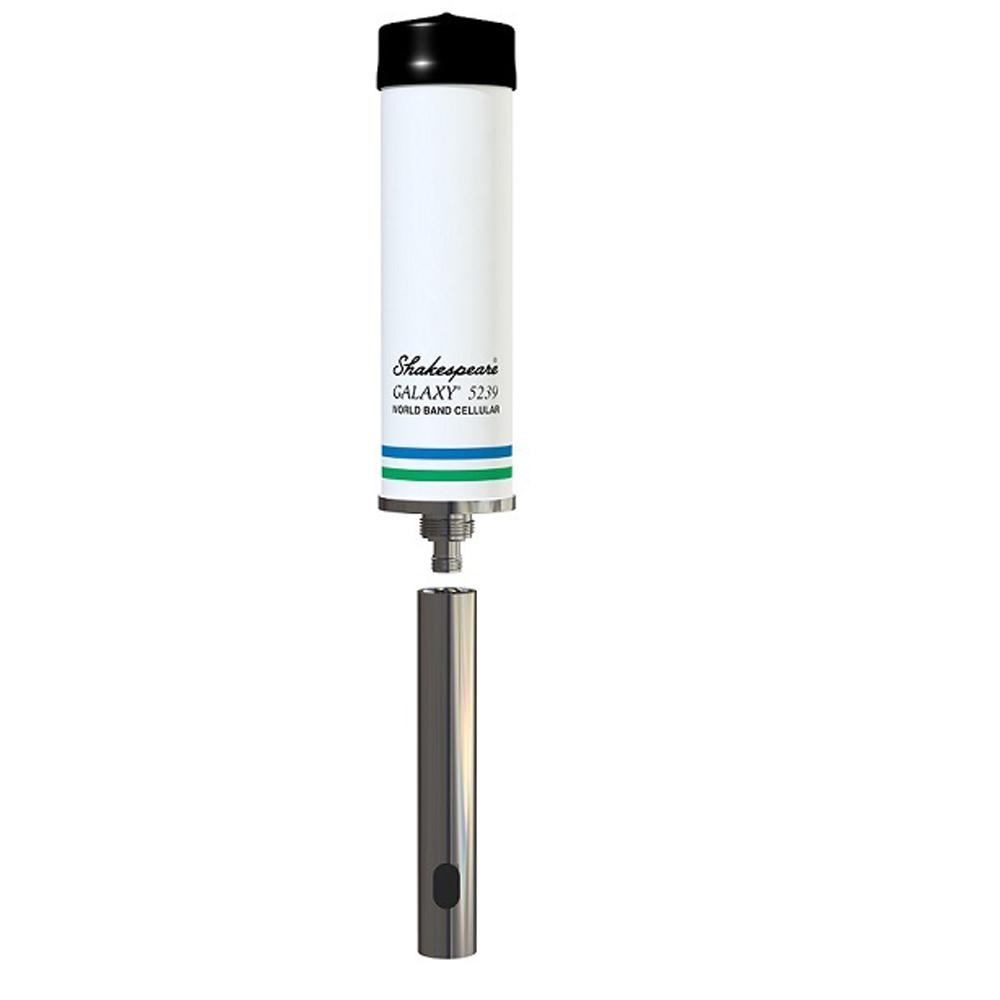

Shakespeare 5239 9.25″ Galaxy World Band Cellular Antenna
Model: 5239
UPC: 719441900960
- Full Band (698 — 2700 MHz) Broadband
- 2G/3G/4G and WLAN systems
- Wi-Fi 802.11n compatible
- Designed for marine use
- Omni-directional antenna 3-4 dB Gain
- Easy to install
The Galaxy 5239 antenna is our smallest Galaxy antenna, but don’t let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1" -14 threaded mounts.
Specifications
| Frequency | 698-960 / 1700-2700 MHz |
| Input Impedence | 50 ohm |
| Antenna Gain | 2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz |
| VSWR | ? 1.8 |
| Power Rating (W) | 10 |
| Polarization Type | Vertical |
| Radiation | Omni-directional |
| Maximum Power (W) | 100 |
| Connector Type | N-female |
| Operating Temperature (F) | -22° to +176° |
| Mounting | 1 in x 14 thread mount |
| Ground Plane | Internal |
| Material | Fiberglass |
| Dimensions | 9.25" H x 2.625" D |
What’s in the Box:
- Antenna
- Ferrule
