Description

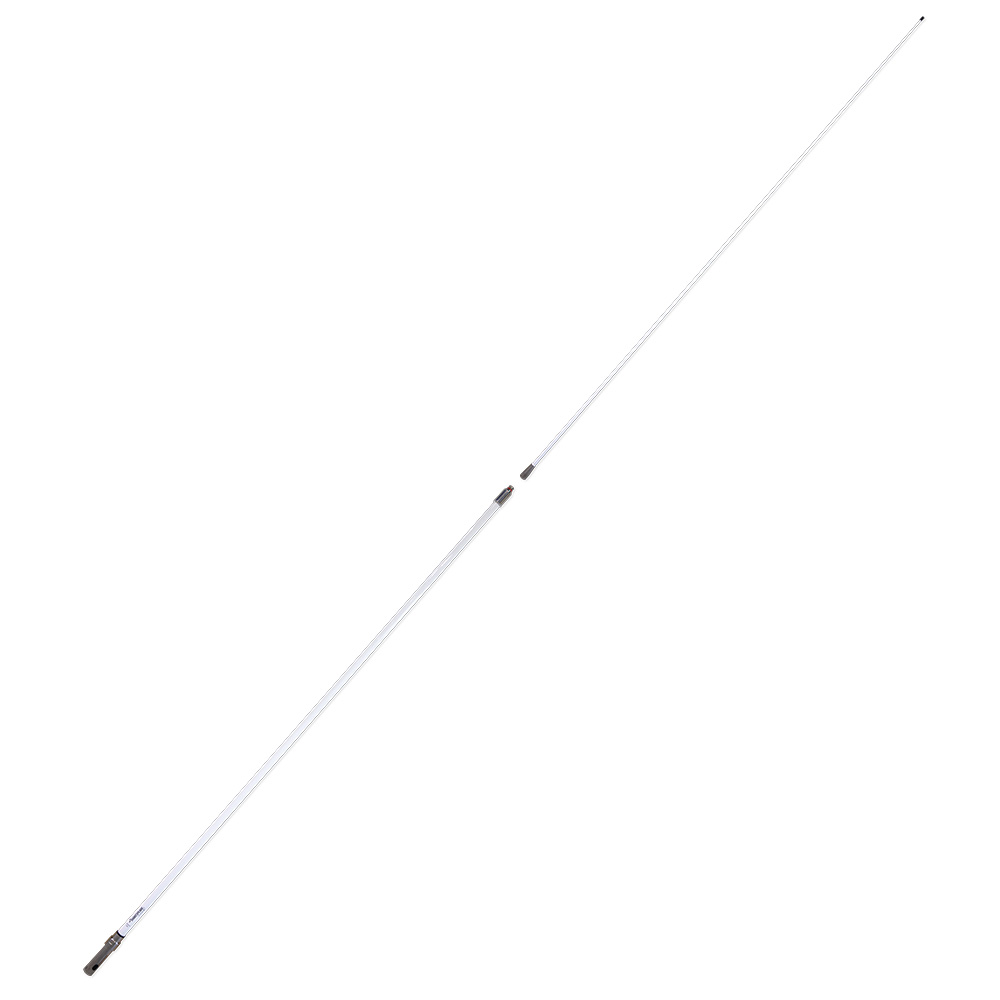

6018-R Phase III VHF Antenna – 17′ 6″ (5.3M) VHF Marine Band 9dB Gain
Good communication over the VHF Marine Band depends on antenna height, quality and dB Gain. This high performing Phase III™ marine antenna is a powerhouse providing all of those necessities in our rugged, high-strength, foam-filled fiberglass radome for stability in high seas, high winds and high speeds.
Features:
- Silver-plated outer conductor, copper inner conductor
• Stainless steel mounting sleeve
• Type SO-239 connector inside mounting sleeve for easy mounting and dismounting for stowage
• Suggested mount: Shakespeare® Style 409-R or 410-R Mounting Kit
• Two sections: Base 110″, Tip 110″
Specifications:
- Design: Collinear-phased 1/2-wave elements with choking sleeve
- Height: 18′ (5.48m)
- Weight: 20lbs (9kg)
- Gain: 8dB
- Connector Type: SO-239
- Suggested Mounting: 409-R or 410-R
- Impedance: 50 ohms
- Max Input Power: 150W
- DC Grounding: No
- Shakespeare Limited Warranty: 8 years
Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = Stainless Steel | Length (Inches) = 210"
