Description

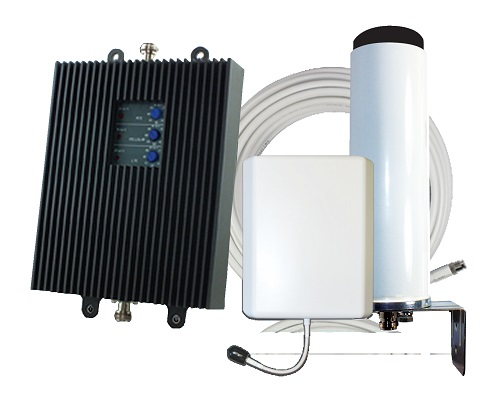

This full-featured amplifier kit includes manually adjustable dials for each frequency and automatic shutdown is built-in for optimizing performance. Ideal for large vessels, homes or office buildings and warehouses with a low cellular signal and/or requiring large coverage. Covers up to 6,000 square feet. Supports Multi-Users ( up to 8 )
| CA-T T-Mobile | |
| Frequency | Uplink 1850-1910 Downlink 1930-1990 |
| Uplink 824-849, Downlink 869-894 | |
| Uplink 1710-1755, Downlink 2110-2155 | |
| Avg Gain |
65dB |
| Maximum Gain |
70dB |
| VSWR |
≤2.0 |
| Standard Supporrted |
LTE or AWS, HSPA(+), EVDO, CDMA, GSM, UMTS, WCDMA, and all other standard cell phone networks |
| AC Power |
Input AC110V, 60Hz; Output: DC6-12V |
| Maximum RF Output Power |
3W EIRP for Cellular, 2W EIRP for PCS, 3W EIRP for LTE, 1W EIRP for AWS |
| Noise Figure | 7dB |
| Cable |
CM400 Recommended |
| RF Connectors |
N Female connectors on both ends |
| Power Consumption | <30w |
| Dimensions Amplifier |
8.5" x 6.25" x 1.5" |
| Amplifier Weight | 3lbs |
