Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna

55773
Shakespeare

$219.99 $127.03

1 in stock
Qty :

Description

Cellular/Wi-Fi World Band Galaxy Antenna

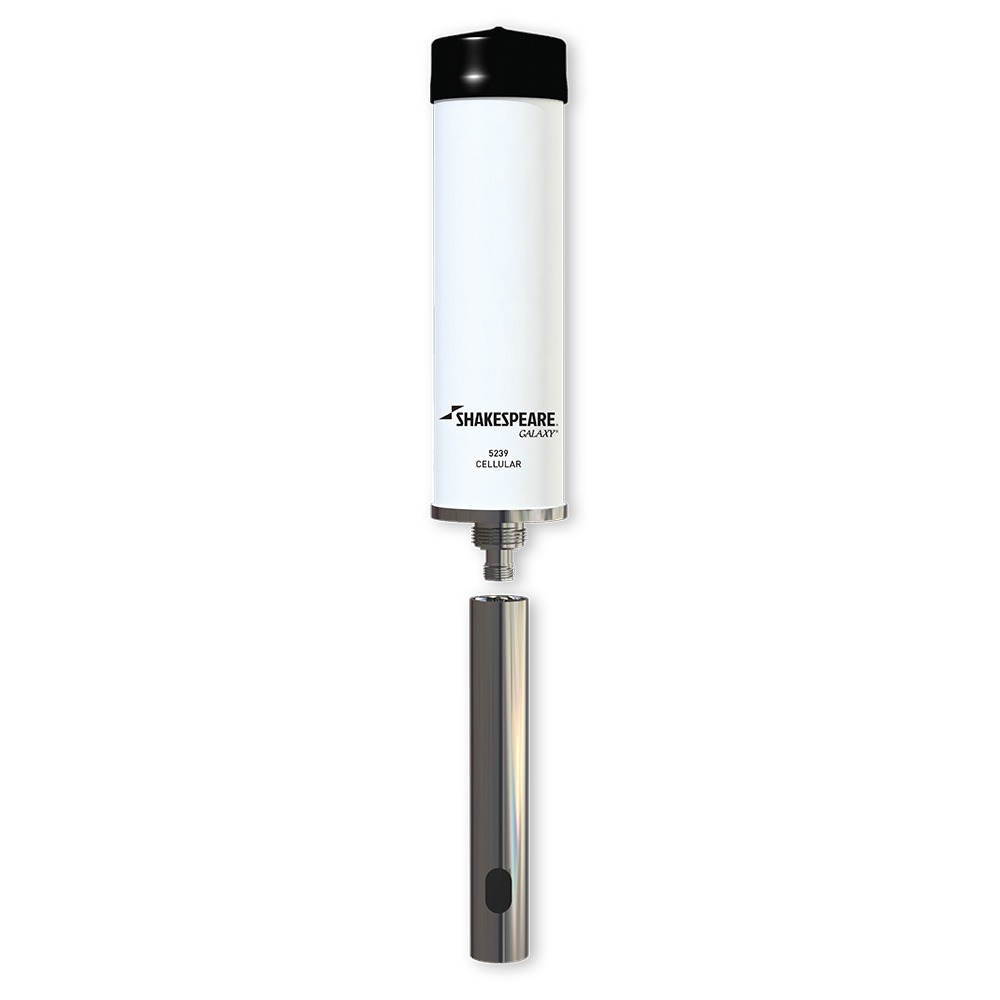

The Galaxy 5239 antenna is Shakespeare’s smallest Galaxy antenna, but don’t let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

  • Full Band (698 – 2700 MHz) Broadband
  • 2G/3G/4G and WLAN systems
  • Wi-Fi 802.11n compatible
  • Designed for marine use
  • Omni-directional antenna 3-4 dB Gain.
  • Easy to install
  • Includes FME Cables

Specifications:

  • Frequency: 698-960/1700-2700 MHz
  • Input Impedence: 50 ohm
  • Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
  • VSWR: ≤ 1.8
  • Power Rating (W): 10
  • Polarization Type: Vertical
  • Radiation: Omni-Directional
  • Maximum Power (W): 100
  • Connector Type: N-female
  • Dimension: 9.25″ H x 2.625″ D
  • Color: White
  • Operating Temperature (F): -22 to +176
  • Mounting: 1″ x 14 Thread Mount
  • Ground Plane: Internal
  • Material: Fiberglass

Length (Inches) = 9.25" | Ferrule Type = NONE | Construction = Fiberglass | Color = White | Antenna Band = NONE | Speed - Max = NONE | Wireless = NONE

Additional information

Weight 1.8 lbs
Dimensions 11 × 5 × 5 in
Model Number 5239
UPC 719441900960
