Description

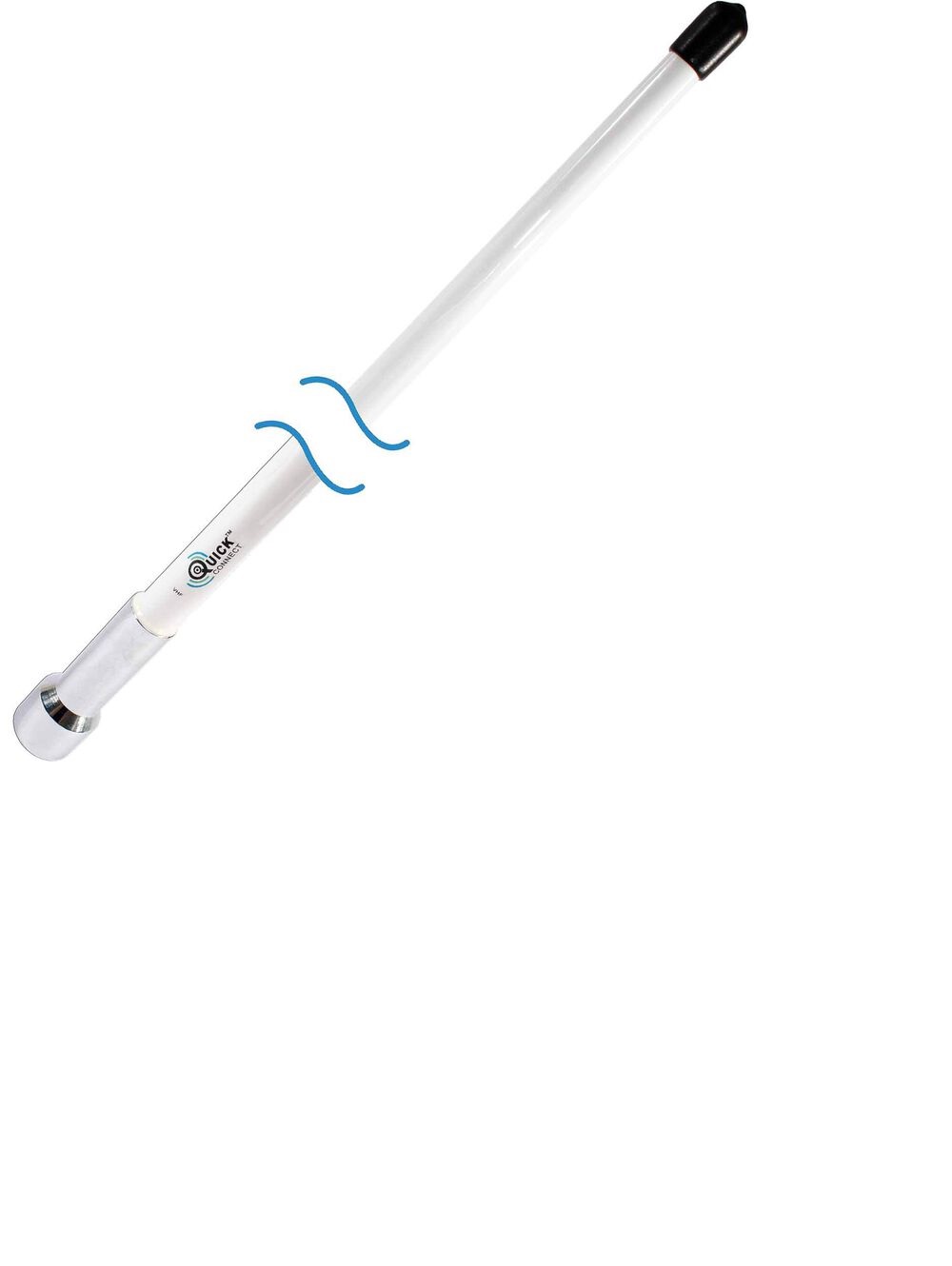

Shakespeare Quick Connect 8′ White Fiberglass VHF Antenna – Tubed
Model: QC-8T
UPC: 719441173005
- QuickConnect™ system, screw or unscrew antenna to disconnect or connect
- High quality connection so that no noise is generated due to vibrations
- Splash protection cap to protect the connector on the mount when antenna is disconnected
- Centerpin® PL-259 Connector is an easy crimp-on type connector
- Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount
Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the new QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.
Must use Quick Connect Series Mounts
Specifications
| Band | Marine VHF |
| Antenna gain | 6db |
| Maximum input power | 50 watts |
| SWR | Nominally 1.3:1 at 156.8 MHz |
| Bandwidth | 5 MHz within 2.0:1 VSWR |
| Ferrule | Chrome-Plated Brass |
| Coax supplied | None |
| Connector supplied | None |
| Color/finish | White Fiberglass |
| Polarity | Vertical |
| Impedance | 50 Ohms (with QC Mount attached) |
| DC Ground | No DC Ground — The antenna will read open on continuity test. |
