Shakespeare VHF 4' QuickConnect™ 3dB f/QCM Series Mounts

97569
Shakespeare

$84.99 $67.20

10 in stock
Qty :
,

Description

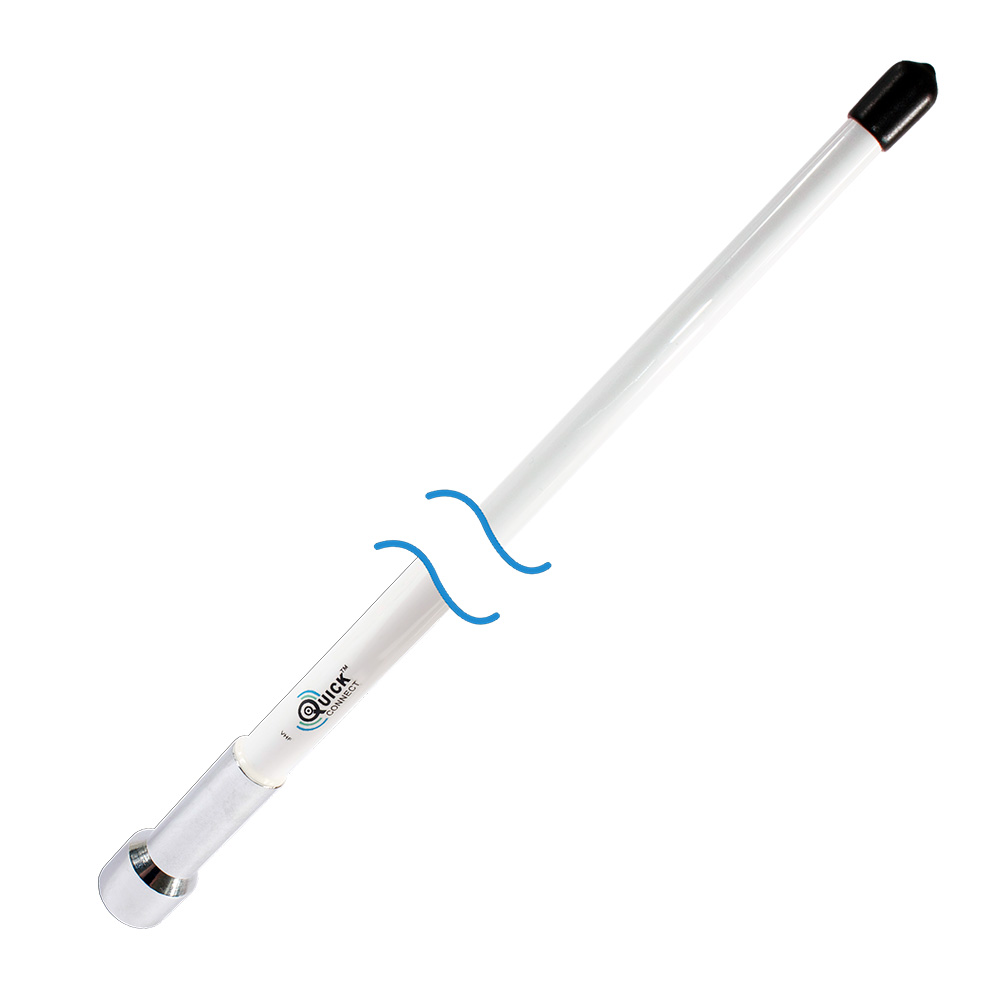

VHF 4′ QuickConnect™ 3dB for QCM Series Mounts

QuickConnect™ antennas stem from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

  • QuickConnect™ System – Screw or unscrew the antenna to disconnect or connect
  • Splash Protection Cap – Protects the connector on the mount when the antenna is disconnected
  • Centerpin® PL-259 Connector – An easy crimp-on connector
  • Base connector included for use with QuickConnect™ mounts only
  • Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
  • Maximum input power of 50W
  • The bandwidth of 5 MHz within 2.0:1 VSWR
  • Does not contain a built-in DC ground connection

Antenna Band = VHF | Color = White | Construction = Fiberglass | Ferrule Type = NONE | Length (Inches) = 48"

Additional information

Weight 2.3 lbs
Dimensions 54 × 3 × 3 in
Model Number QC-4-T
UPC 719441173104
