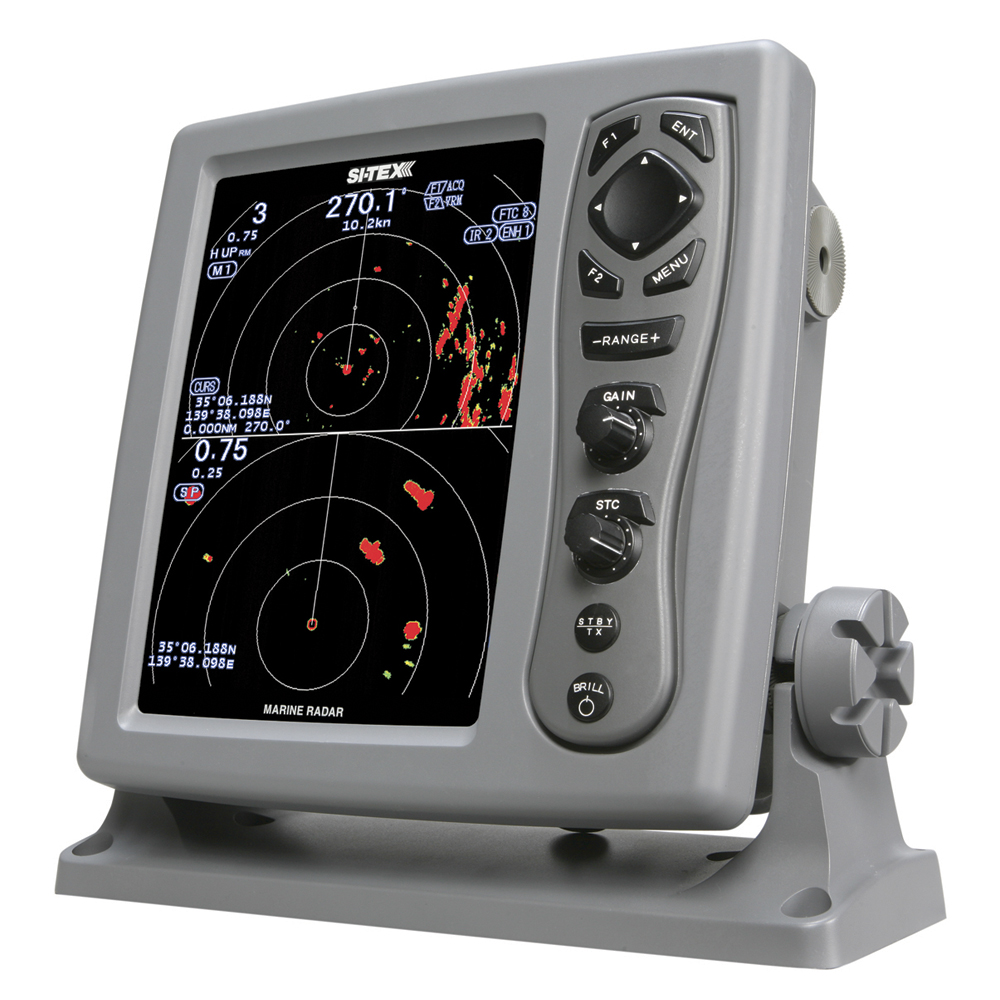

SI-TEX 8.5″ Color LCD Radar w/4kW Output 1/16-48NM Range – 3.5' Open Array Antenna

92667
Si-tex

$5999.00 $4661.22

0 in stock
Qty :
,

Description

8.5″ Color LCD Radar with 4kW Output 1/16-48NM Range – 3.5′ Open Array Antenna

SI-TEX’s T-940-3 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

  • Display: 8.4″ TFT Color LCD
  • Includes 3.5′ Open Array, Output: 4 kW
  • Power: 12 / 24 Volt DC, Consumption: 70 Watts

In the Box:

  • Display Unit MRD-103 with hardcover
  • Connecting Cable 242J158055A -10 M with 2 connectors
  • DC Power Cable CW265-2M 2m
  • CCD Camera Cable CW-405-0.3M
  • Operation manual, Quick reference
  • Fuse (8A)

Additional Features:

  • It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets

Radome:

  • 4kW
  • 48NM
  • 3-1/2′ Open Array

Display:

  • Brilliant 8.4″ color LCD daylight viewable display
  • 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
  • True-color radar feature displays echoes in different colors depending on signal strength
  • The real-time presentation offers smooth movement as bearing changes
  • The T-940 has two-speed antenna rotation for tracking quick-moving, close-in targets:
    • 48 RPM
    • 24 RPM (Requires 24 Volt DC input)
  • Selectable range scales from 1/16 NM
  • Warning Zone alerts you to “incoming” and “departing” targets breaking your preset guard zone
  • Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
  • RGB output for connecting (2) optional external monitors
  • Easy access to all system functions with a simply arranged keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant control of Gain and STC
  • The built-in flush mounting system makes installation easy
  • All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
  • The Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
    • Monitor a nearby buoy and a far off island at the same time
  • True Trail function clearly identifies moving targets from stationary targets
  • The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
  • Accepts CCD camera input, to display split-screen Radar and Camera
    • Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
  • Optional ATA (Automatic Tracking Aid) allows you to track up to 50 user designated targets
  • Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
  • Optional AIS interface displays information on up to (100) AIS targets including the vessel’s MMSI number, name, course, and speed of each vessel with an AIS transmitter
    • This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

Specifications:

Antenna Unit:

  • Scanner 3-1/2′ Open Array
  • Peak Power Output 4kW
  • Output Frequency 9410 + 30MHz
  • Beam Width:
  • Horizontal 2.5°
  • Vertical 22°
  • Rotation 24 or 48 rpm (48 rpm; 24V DC or more
  • Pulse Width .08, 0.15, 0.3, 0.5, 1 use
  • IF Frequency 60 MHz
  • Range Accuracy Better than 8m
  • Min. Detecting Distance: Within 25m

Display Unit:

  • Display Size/Type 8.4″ TFT Color LCD (480 x 640 pixels)
  • Off Centering Max 66%
  • Display Modes Heads up, North up*, Course up* WPT up**, True motion*
  • Indication System PPI, PPI/PPI, PPI/NAV
  • Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T — PNEW to 24,T — 941 to 32, T — 940 to 48)
  • Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
  • Bearing Accuracy Better than + 1°
  • Video Level 8 colors
  • Distant Unit (VRM unit) NM, SM, KM
  • Alarms Entry or Breakaway (In and Out)
  • Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
  • AIS Interface Option (100 targets)
  • ATA Option (Auto/Manual, 50 targets)
  • Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
  • Output Data Format TTM, TLL
  • Power Requirements 10.8 – 31.2 Volt DC
  • Power Consumption 70 Watt or less
  • Water Protection
    • Display: IPX 5
    • Antenna CFR 46 IPX

*Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on the application of the user.

**Requires waypoint data input

Array Size (Inches) = 42" | Power - Output = 4kW | Range - Max (Miles) = 48nm | Resolution (VxH) = NONE | Screen Size = NONE

Additional information

Model Number T-940A-3
