Description

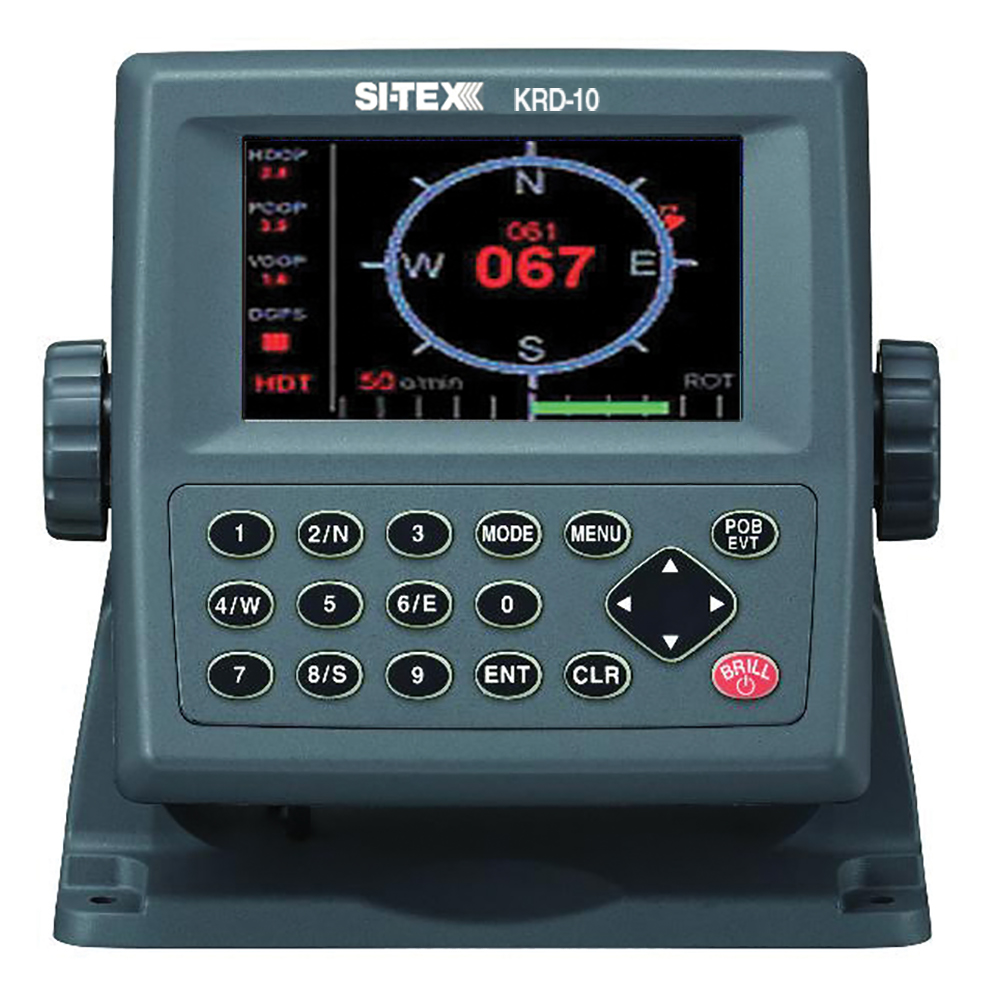

Color LCD NMEA 0183 Repeater
Features:
- Maximum performance and simple setup
- Clear 4.3″ Color LCD Display that is viewable even in the harshest sunlight conditions
- Bonded color LCD ensuring condensation free operation as well as great visibility
- Utilizing NMEA-0183 interface external sensors can easily be connected for simple and reliable operation
- 18 Different Display Modes
- Converts from L/L to Loran C, Loran A, & Decca LOPs
- Track Plotter features 10,000-point, 100 Route, & 3,000 track point memory
- Low 4.5-watt power consumption, 10.8 to 31.2 VDC power supply
- Very easily flush mounted
Specifications:
- SI-TEX Model KRD-10
- Display: 4.3″ color LCD
- Display Resolution: 480 x 272 pixels (WQVGA)
- Display Mode: Compass, Rate of turn, Rudder Angle, Navigation, Plotter, Water Temperature, Highway, Weather Info,
- Standard Input & Output: NMEA-0183 versions 1.5, 2.0, 3.0
- Nominal Voltage: 10.8 to 31.2 VDC
- Water Protection: IPX6
- Dimensions: 5.75″ W x 5.75″ H x 2.75″ D
In the Box:
- KRD-10 Display with Mounting Bracket, Knobs, Sun Cover
- Power Cable & NMEA Interface Cable
- Operation Manual
18 Functions Including:
- NAVIGATION
- STEERING
- HIGHWAY
- DEPTH
- WATER TEMPERATURE
- WIND
- HEADING
- COURSE
- RATE OF TURN
- POSITION
- CURRENT
- WEATHER DATA
Instrument Function = NONE | Screen Size = 4.3" | Shape = Rectangular | Transducer Type = NONE
