Description

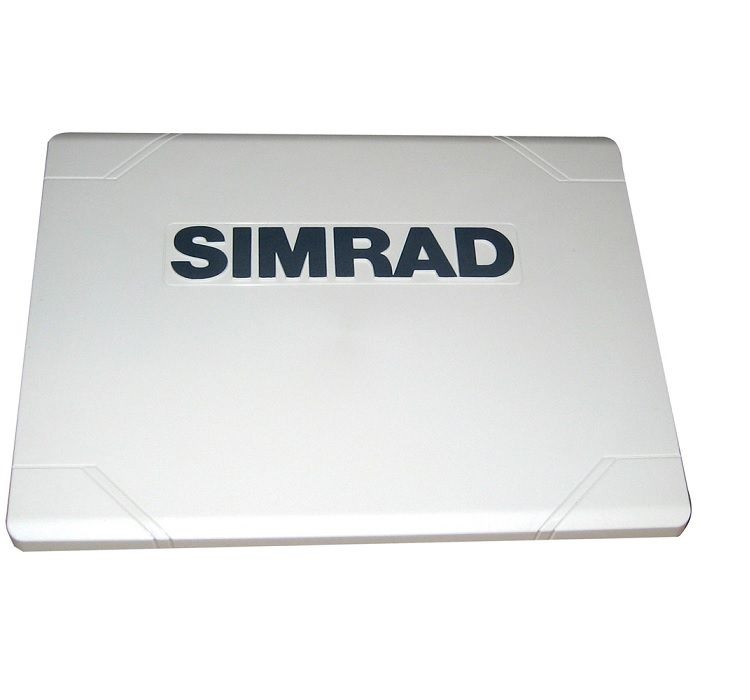

Simrad GO7 XSR Sun Cover
Model: 000-14227-001
Protect your Simrad display with this Sun Cover for GO7 XSR
Specifications
| Operating Temperature Range | “-15°C to +55°C (5° F to 131° F) |
| Storage Temperature Range | “-20°C to +60°C (4°F to 140°F) |
| SD Card Storage | 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS |
| Ethernet Ports | 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Weight | 1.320 kg (2.91lb) |
| Supply Voltage | 10 – 17 V DC |
| Update rate | 10 Hz |
| Power Consumption typical | 12 W |
| Screen Brightness | 1200 nits |
| Dimensions H x W x D | 197 mm x 141 mm x 82.7 mm (7.56″ x 5.55″ x 3.26″) (no bracket) |
| Warranty Period | 2 Years |
| Power Consumption max | 20 W |
| GPS Receiver Channels | 32 Channels |
| Recommended Fuse Rating | 3A |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Display Resolution | 800×480 |
| Internal Storage | 90MB |
| Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission |
| Digital Switching | BEP C-Zone |
| Mounting Type | Bracket or Panel |
| Approvals Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Shock Vibration | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec |
| NMEA 0183 Sentences supported | Exports NMEA0183 over WiFi |
| Radar compatibility | Halo, Broadband, HD Radars |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft.) |
| Charts supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Charts Supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector |
| Item Connectivity WiFi | Internal |
| Bluetooth | Internal |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| Waterproofrating | IPX 6 and 7 |
| PC Connectivity | None |
| Video | None |
| AIS | Receive AIS data over NMEA 2000 only |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| Catography included | TBD |
| Interface | Touch screen, OP40 or OP50 controller via NEA 2000 |
| Manouevres Turn Patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Correction | WASS, MSAS, EGNOS, GLONASS |
| Backlight Color | White |
