Simrad B60 20 Deg 50/200KHZ Black 9-Pin Thru Hull with 10m Cable

SIM00016188001

$325.00 $247.55

0 in stock
Qty :

Description

Simrad B60 Xsonic 50/200kHz Bronze Thru-hull 20 Degree Tilted Element

Model: 000-16188-001

  • Depth and water temperature
  • 600 W
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200′)
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
  • Perfect for center-console or trailered boats
  • Low-profile protrusion extends only 5 mm (3/16″) outside the hull
  • No effect on your boat’s running performance
  • Bronze housing

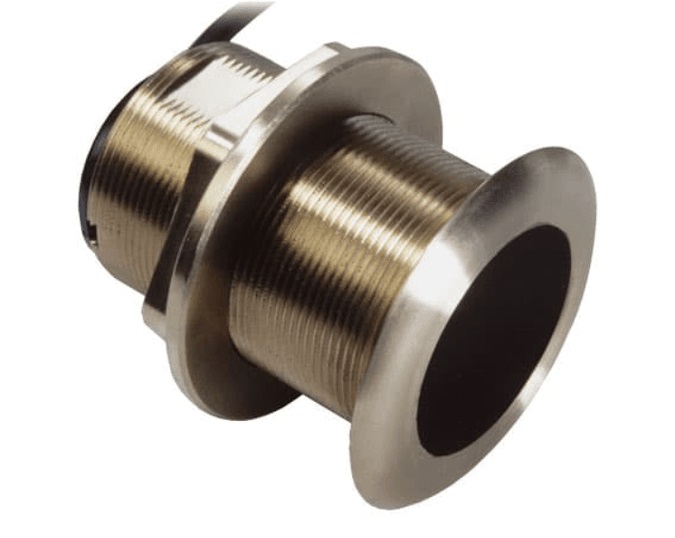

The B60 is a Bronze, thru-hull, dual-frequency, depth and temperature transducer. The ceramic element gives excellent echo returns for more accurate depth readings.

Specifications

Weight 1.4 kg (3 lb.)
Recommended Boat Length Up to 8 m (25′)
Hull Material Fiberglass or wood
Hull Deadrise 16°-24°
Acoustic Window Urethane
Hole Diameter 60 mm (2-3/8″) (fiberglass or wood hull)

Additional information

Weight 6.00 lbs
Model Number 000-16188-001
UPC 9420064132140
