Simrad Bronze HDI Thru Hull 50/200/455/800 Khz 9-PIN 12D

SIM00013906001
Simrad

$519.00 $411.98

1 in stock
Qty :

Description

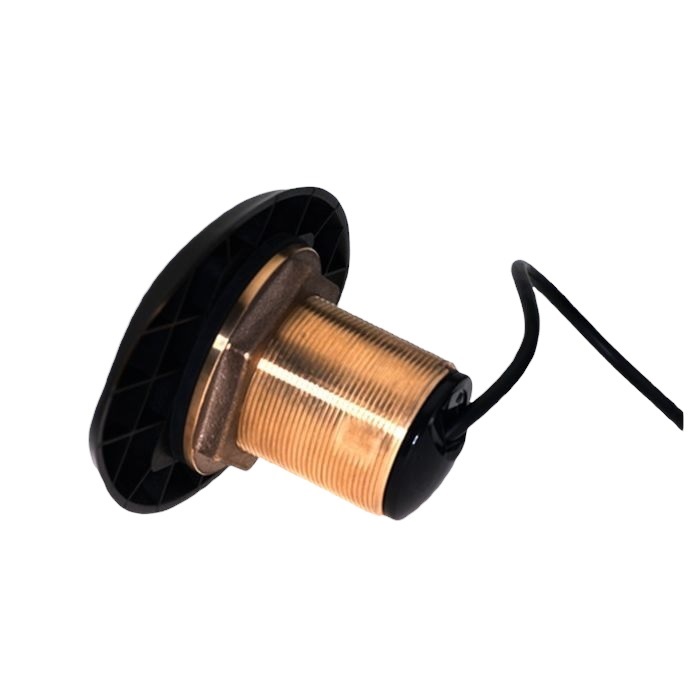

Simrad Bronze HDI XDCR 12deg Tilt 50/200 455/800

Model: 000-13906-001

  • Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature

The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder. The transducer must be selected in the installation menu on the device.

Specifications

Frequencies 50,200,455 and 800 kHz
Beam width @ -3db 50kHz 45° 200kHz 11° 455kHz Fore to aft 2.8°, Port to starboard 56°
800kHz Fore to aft 1.6°, Port to starboard 32°
Cable length 10 meter

Additional information

Weight 15.00 lbs
Model Number 000-13906-001
UPC 9420024162613
