Description

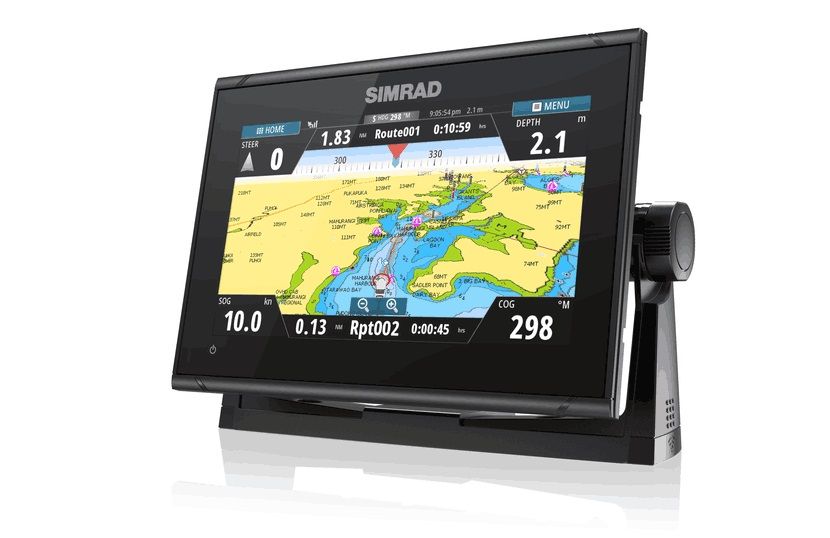

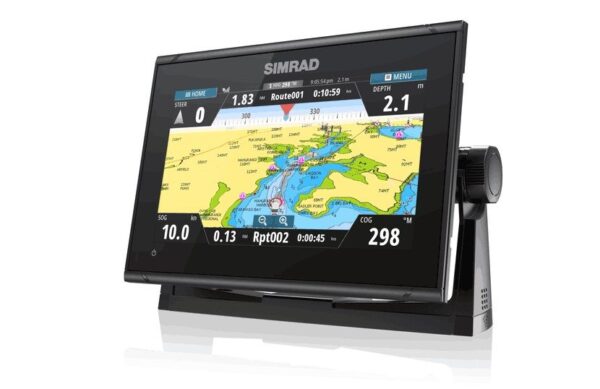

Simrad GO9 XSE — 9’’ Multifunctional Display with 83/200 transducer and C-MAP Discover charts
Model: 000-16293-001
- Easy to use, High brightness 9" tablet style touchscreen
- Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
- Radar port for connection to a Simrad solid state radar
- Direct Audio, Autopilot, communication and engine connection and control over NMEA2000
- Built-in WiFi for mobile device mirroring and internet downloads of charting and software
The GO9 XSE offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Tap to create or select waypoints, pinch to zoom, or tap and drag to pan smoothly across charts. Simple home screen and menu layouts make all functions quickly accessible, with large and clearly-captioned icons that are easy to recognise and tap.
The GO9 XSE is a full-featured chartplotter, with support for the widest available range of cartography options including C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts. Navigate confidently to destinations near and far, with the flexibility to choose charts that best fit your needs and location. Set and record those destinations easily with simple waypoint mangement: mark waypoints with a touch, and assign meaningful names that make it easy to look up your desired destination whether you’ve mapped out ten places or a thousand.
The Simrad GO9 XSE is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3G™, Broadband 4G™, and Halo™ Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.
The Simrad GO9 XSE is fully customizable to suit your vessel and your favorite on-water activities — from power boating to fishing, to water sports. Customize your home screen with shortcuts to the features you use most, and personalize it with your choice of wallpaper. Adjustable split-screen views and customizable panel layouts let you see everything you need on-screen at once, whatever your activity.
Designed for power boaters, TripIntel technology tracks and displays the key information you need to plan safe and enjoyable days on the water. Make smart decisions with fuel range overlaid on charts, easy access to current and future tide levels, and a detailed history of your previous trips including the route you took and how your boat performed.
With a high-speed GPS receiver updating your position ten times every second, the Simrad GO9 XSE is ideal for use aboard fast-moving RIBs and powerboats. Watch your boat’s movement tracked smoothly, accurately, and in real-time, without ‘jumping’ from point to point on the display.
Designed with power boating in mind, the Simrad GO9 XSE offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display. Choose the information most relevant to your cruising style and on-water activities with the ability to edit on-screen data items.
The Simrad GO9 XSE connects to any NMEA 2000®-capable equipment aboard your vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. Create your own custom digital instrument displays, bringing a wealth of information to even the most crowded dash while keeping a clean look with as few gauges as possible.
Knowing the true depth beneath your hull can help you enjoy your time on the water with fewer worries, and makes it easier to locate suitable anchorages in unfamiliar waters. With built-in sonar, just add a suitable sonar transducer for accurate, real-time depth tracking. A scrollable depth history view lets you track back and easily set waypoints for promising anchorages, while StructureScan Imaging™ combines DownScan and SideScan sonar to offer a picture-like view of the bottom beneath your vessel.
Using an optional ForwardScan transducer, this forward-looking sonar technology provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.
With Wi-Fi built in, the Simrad GO9 XSE provides direct access to GoFree cloud services including easy wireless map downloads, software updates, and more. Whether hooked up to your home Wi-Fi with your boat trailered in the driveway, logged in to your marina’s Wi-Fi, or tethered to your smartphone out on the lake, you can access GoFree cloud services anywhere you have an internet connection. On the water, GoFree connects the Simrad GO9 XSE to your mobile devices, mirroring your display’s screen on your smartphone or giving you full remote control from your tablet with the free GoFree Controller app.
The Simrad GO9 XSE is the only GO Series display compatible with SiriusXM Marine satellite weather, via the optional WM-3 expansion module, for real-time access to weather information right on your display. With onboard access to weather radar, surface buoy reports, NOAA Marine Zone forecasts and more, you can check out the conditions offshore before you even leave the dock. SiriusXM Marine is a subscription service, exclusively available within North America.
Specifications
| Screen brightness | 1200 nits |
| Screen resolution | 480 x 800 (H x W) |
| Operating voltage | 10 – 17 V DC |
| Current draw at 13.6 V (sonar off, max B/L) | 1 A |
| Protection | reverse polarity and temporary over-voltage to 36 V |
| Alarm output current | 1 A max |
| NMEA 2000 (compliant) | 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) |
| Card reader | Dual microSD |
What’s in the Box:
- GO9 XSE
- 9-Pin High Speed Skimmer Transducer 83/200 kHz
- DISCOVER – NORTH AMERICA
- Bracket NSX 3009, NSS7evo3, Zeus3-7, GO9 and Vulcan 9
- GO9 XSE & Vulcan 9 Edge Bezel
- GO9 XSE & Vulcan 9 Dash Mount Kit
- 4-Pin Power Cable
- GO9 XSE Suncover
- Gimbal Bracket Knobs
- Easy to use, High brightness 9" tablet style touchscreen
- Built-in advanced echosounder capable of displaying CHIRP, Forwardscan, Sidescan and Downscan images
- Radar port for connection to a Simrad solid state radar
- Direct Audio, Autopilot, communication and engine connection and control over NMEA2000
- Built-in WiFi for mobile device mirroring and internet downloads of charting and software
- GO9 XSE
- 9-Pin High Speed Skimmer Transducer 83/200 kHz
- DISCOVER – NORTH AMERICA
- Bracket NSX 3009, NSS7evo3, Zeus3-7, GO9 and Vulcan 9
- GO9 XSE & Vulcan 9 Edge Bezel
- GO9 XSE & Vulcan 9 Dash Mount Kit
- 4-Pin Power Cable
- GO9 XSE Suncover
- Gimbal Bracket Knobs
,
