Simrad M260 9-PIN In-Hull 50/200KHZ Transducer

SIM00013914001
Simrad

$1159.00 $846.82

2 in stock
Qty :

Description

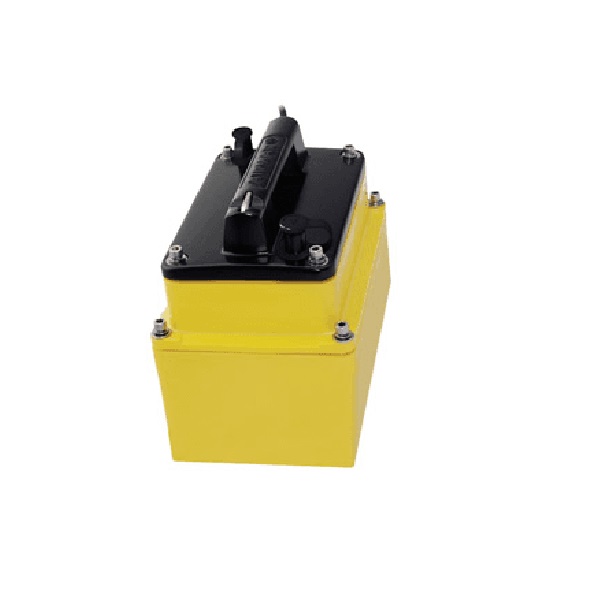

Simrad M260 9-pin In-hull transducer

Model: 000-13914-001
UPC: 9420024162699

  • 50 kHz with 19° beam width
  • 200 kHz with 6° beam width
  • Up to 900 m (3000 ft) range at 50 kHz
  • 8 internal broadband ceramics
  • In-Hull with plastic/urethane housing and yellow in-hull tank (can mount in existing M260 installed tanks)
  • Suitable for fiberglass hulls
  • Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
  • Recommended for use with the SonarHub sounder module, Simrad NSSevo3 sport multifunction displays

The M260 is a plastic/urethane, in-hull Broadband transducer, ideal for smaller sportfishing and commercial vessels 8 m (25 ft) and up, fishing in depths of less than 900 m (3000 ft). Black 9 Pin connector

The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

Additional information

Weight 15.00 lbs
Model Number 000-13914-001
UPC 9420024162699
