Description
Simrad NSO evo3S 19″ MFD System Pack
Model: 000-15127-001
- iMX 8 Integrated six-core processor for superior performance
- Ultra-sharp, Full HD display
- Seamless touchscreen control of your entire connected SIMRAD® system
- Low-profile glass helm styling
- Extended visibility with six-panel split screen option
- Connect with smartphones, tablets, and internet hotspots
- Integrate with an extensive range of 3rd party technologies
Every NSO evo3S display features a iMX 8 integrated six-core processor delivering category leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to timeless classic.
NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.
Specifications
| Physical | |
| Dimensions 19″ WxHxD | 478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27") With bracket: 509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45") |
| Weight 19″ | 4.8 kg (10.5 lbs.) |
| Compass safe distance | 50 cm (19.7″) |
| Mounting options | Panel or bracket mount (use optional heavy duty bracket (000-13547-001) |
| Environmental | |
| Operating temperature range | -15°C to +55°C (5° F to 131° F) |
| Storage temperature range | -20°C to +60°C (4°F to 140°F) |
| Waterproof rating | IPX6 on the font (when panel mounted correctly with only the front exposed). Rear not waterproof Shock-CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Electrical | |
| Supply Voltage | 12/24 V DC (10 – 31.2 V DC min – max) |
| Power consumption (max) 19″ | 50 W +- 4 W |
| Fuse rating 19 | 10 A @ 12 V DC |
| Connectivity | |
| Ethernet | 3 x RJ 45, 1 Mbit ports. Adapt to 5 pin yellow using Adapter cable 000-11246-001 |
| Wireless | Internal 802.11b/g/n |
| NMEA2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| J1939 | 1 x J1939 Micro-C port |
| NMEA 0183 | 2x NMEA0183 (IEC61162-1), 2x NMEA0183-HS (IEC61162-2) |
| Composite Video In | 2x composite video (BNC) |
| HDMI In | 1x high definition video (1080p, HDCP 1.4, HDMI-A) (Note: will not pass through HDMI, HDCP from HDMI input port) |
| Internal GPS | NO |
| Storage | |
| External storage | 1 x Micro SD card slot or use optional USB dash mount card reader with 2 x Micro SD slots. Max. card size 32GB. Larger if formatted to NTFS |
| Internal storage | 16GB |
| Display | |
| Screen resolution (all sizes) | 1920×1080 |
| Brightness | 1200 nits |
| Screen size and type 24 | MVA 24″ optically bonded TFT |
| Viewing angles | 80° top/bottom, 80° left/right |
| Control | Full touch screen (multi-touch), OP50 remote controllers |
| Applications | |
| Cartography | Compatible with C-MAP (MAX N, MAX N+), Insight, Navionics (Gold, NAV+ Platinum+) , NV Digital (Raster US Charts): CMAP enhanced of U.S.A built in (Rest of world charts required. world base map only) |
| Radar | Compatible with Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar |
| Sonar | Compatible with: SonarHub, S5100, StructureScan3D network echo sounder modules |
| Autopilot Integration | Full auto pilot control and commissioning |
| Autopilot steering modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot manoeuvres turn patterns | U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Weather | SiriusXM via WM-3 (USA only), GRIB |
| AIS | Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) |
| Multimedia | via SonicHub2, FusionLink, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only) |

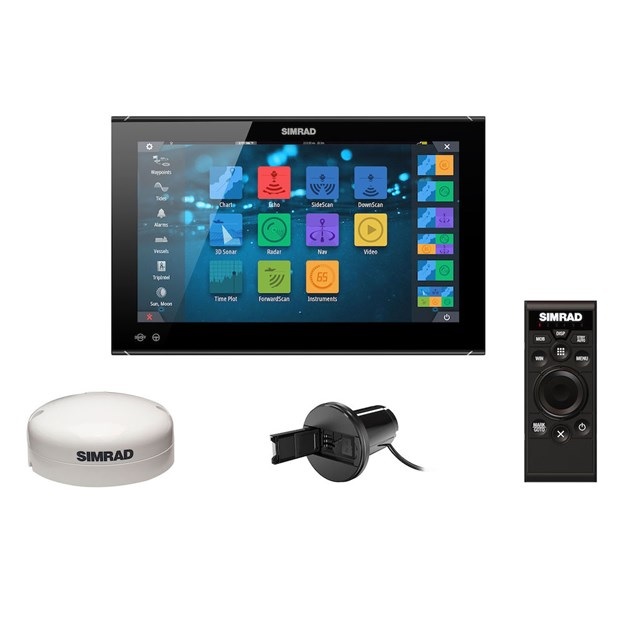

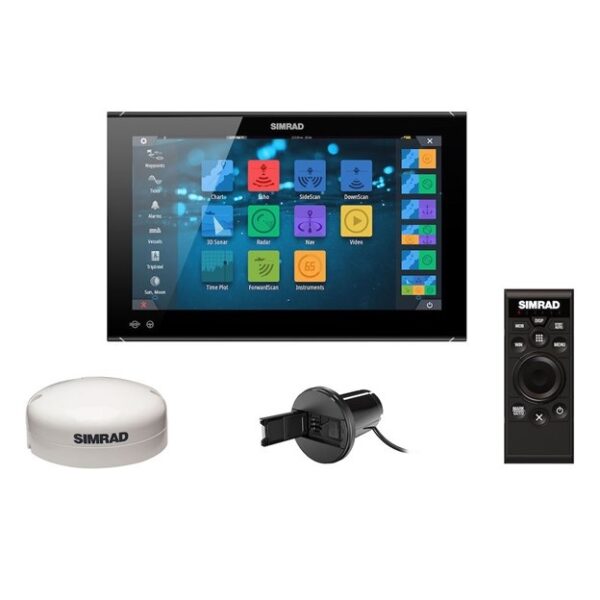

What’s in the Box:
- NSO evo3S MFD 19″
- OP50 Remote – Portrait
- MI10 MicroSD Card Reader
- GS25 GPS Antenna
